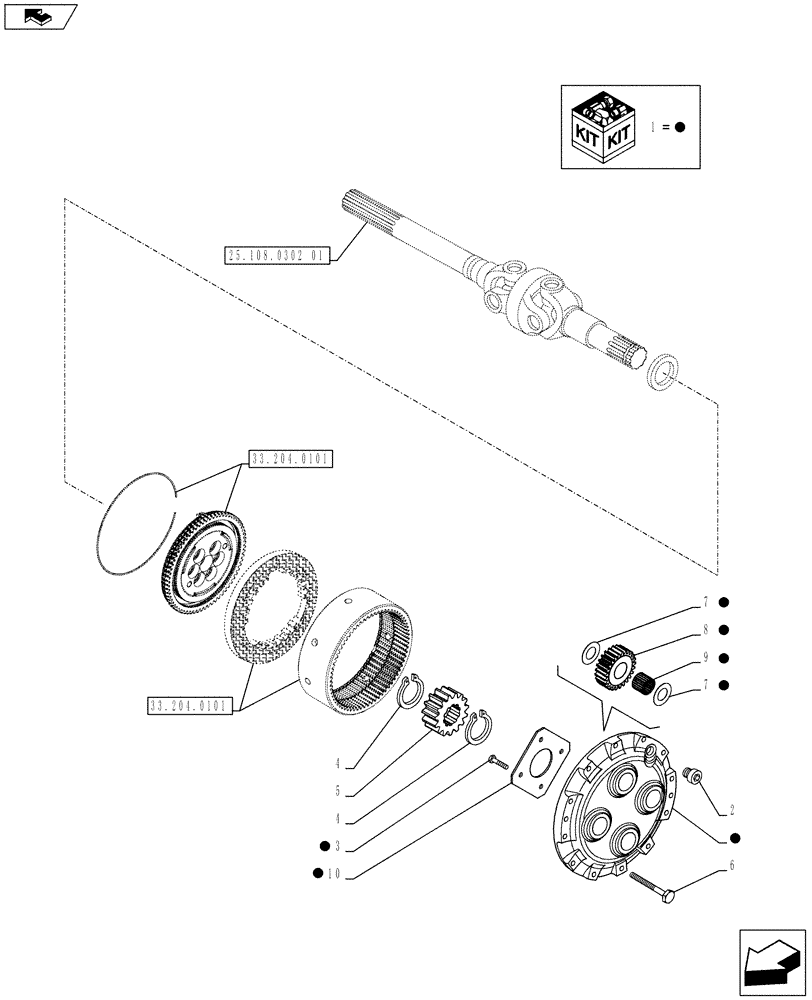

Запчасти Case IH PUMA 230 (25.108.0404) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - EPICYCLICAL FINAL DRIVE (VAR.743964) (25) - FRONT AXLE SYSTEM

1

87576872

PLANETARY REDUCER

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1.5 mm

2шт.

3

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

5123651

SNAP RING,36mm, External

2шт.

5

84262815

PLANETARY GEAR

2шт.

6

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

M12 x 1.25 x 45 mm

24шт.

7

87576870

THRUST WASHER

8шт.

8

87576871

IDLER PINION

4шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

Pkg Qty 27

4шт.

10

87576876

PLATE

1шт.
