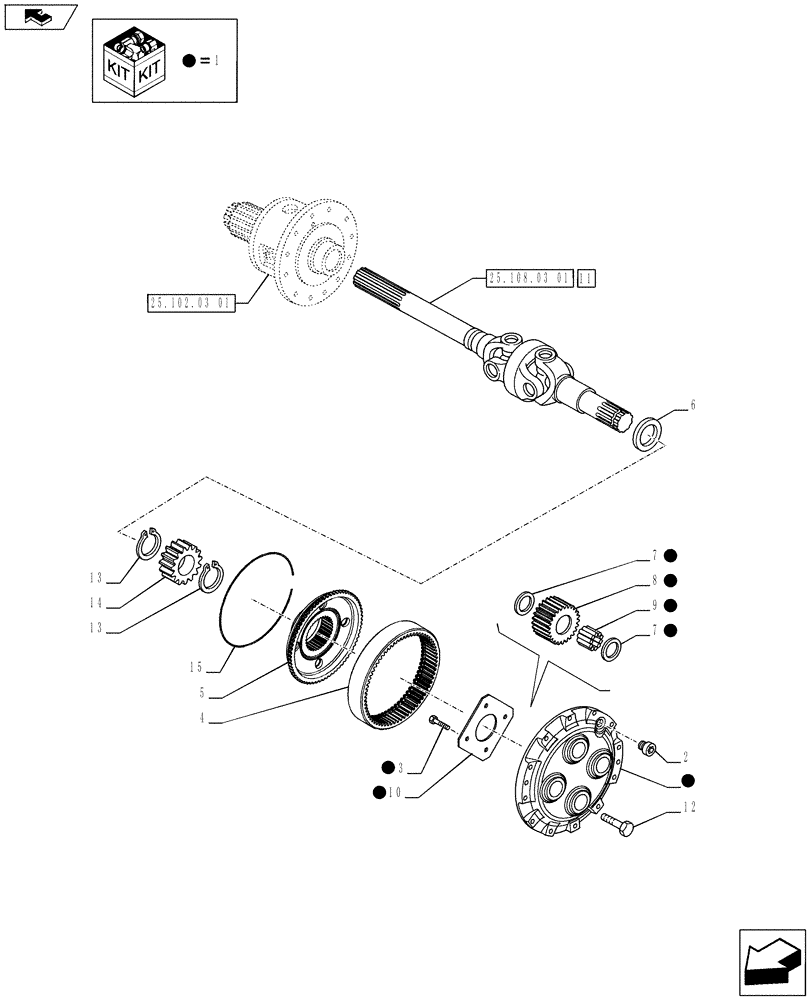

Запчасти Case IH PUMA 230 (25.108.0401) - FRONT AXLE - EPICYCLICAL FINAL DRIVE (VAR.728195-720463) (25) - FRONT AXLE SYSTEM

1

87576872

PLANETARY REDUCER

ASSY, Incl 3, 7 - 10

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

3

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

5102130

RING GEAR

2шт.

5

5141691

DISC

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27

2шт.

7

87576870

THRUST WASHER

8шт.

8

87576871

IDLER PINION

4шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

Pkg Qty 27

4шт.

10

87576876

PLATE

1шт.

11

84184133

AXLE-SHAFT, ARTICULA

LH

1шт.

11

84184130

AXLE-SHAFT, ARTICULA

RH

1шт.

12

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

84262815

PLANETARY GEAR

2шт.

15

4986355

CIRCLIP

2шт.
