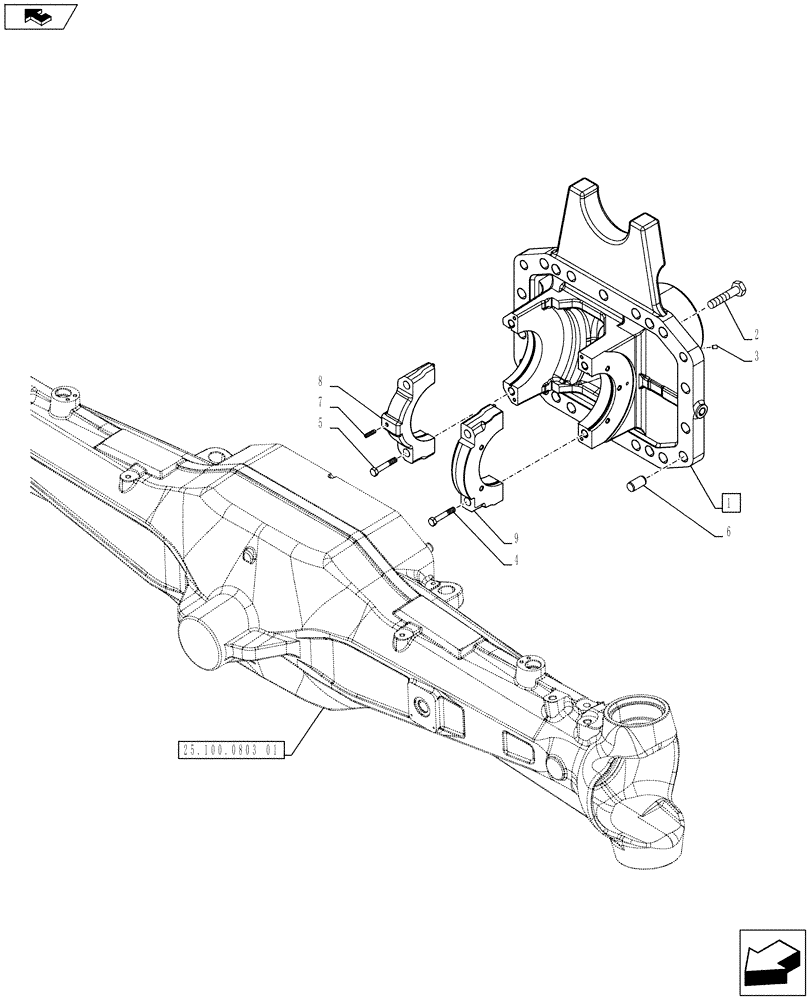

Запчасти Case IH PUMA 230 (25.100.0803[02]) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - DIFFERENTIAL SUPPORT (VAR.743964) (25) - FRONT AXLE SYSTEM

1

84565069

SUPPORT

ASSY, Contains Ref. 3-6, 8-9

1шт.

2

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

M16 x 1.5 x 40 mm

1шт.

3

10268350

PLUG

M8 x 1 mm

1шт.

4

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

M14 x 1.5 x 90 mm

2шт.

5

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

M14 x 1.5 x 75 mm

2шт.

6

4966244

PIN,5mm OD x 15mm L

5 x 15 mm

4шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

M6 x 25 mm

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.
