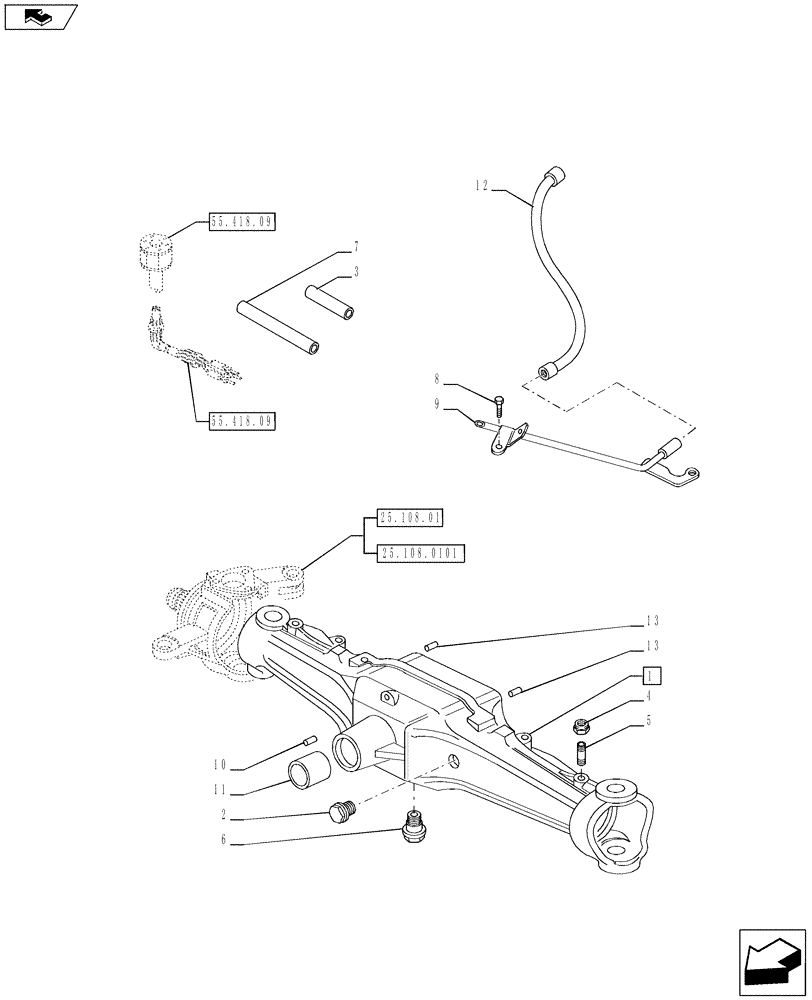

Запчасти Case IH PUMA 230 (25.100.08[01]) - 4WD FRONT AXLE HOUSING (VAR.728195) (25) - FRONT AXLE SYSTEM

1

87633145

AXLE HOUSING

ASSY, Contains Ref. 10,11,13,24

1шт.

2

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

M22 x 1.5

1шт.

3

87329095

HOSE PROTECTION

1шт.

4

16101511

NUT,M12 x 1.25, Cl 8

2шт.

5

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

7

87619627

HOSE PROTECTION

85MM

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

1шт.

8

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

87592753

RIGID TUBE,10 mm ID x 12 mm OD x 368.4, 51 mm L

1шт.

10

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

11

5140170

PIN

1шт.

12

87658190

FLEXIBLE SHEATH

1шт.

13

5174376

DOWEL,M16 x 30

2шт.
