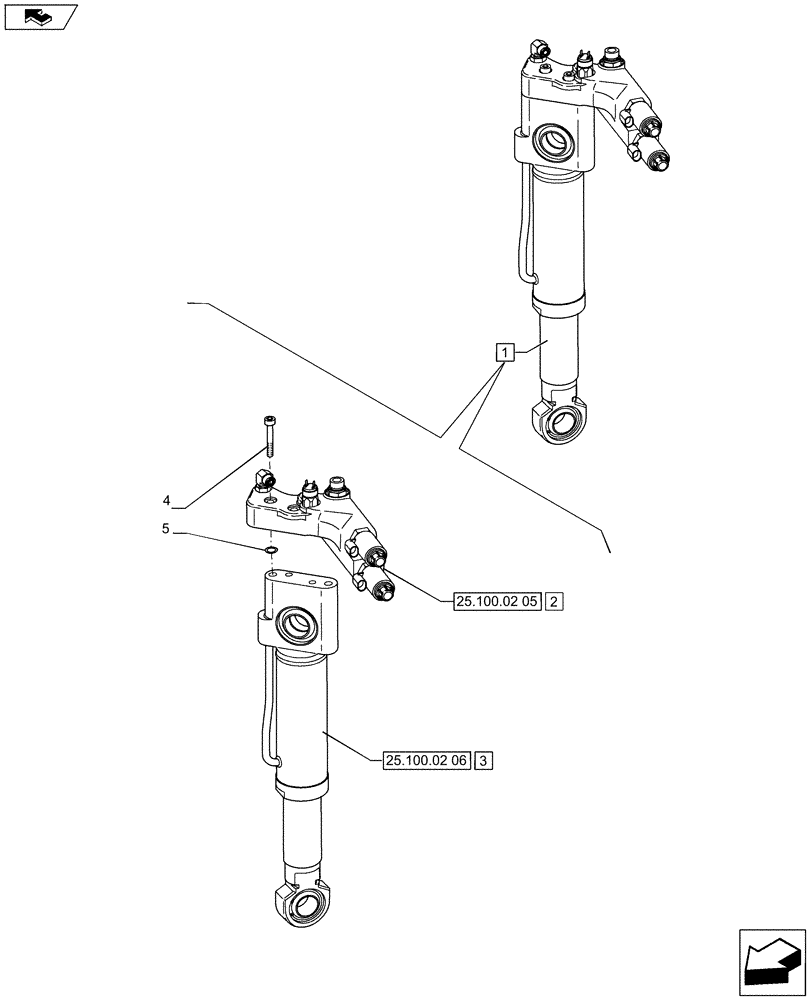

Запчасти Case IH PUMA 230 (25.100.02[04]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER AND VALVE - BREAKDOWN - C7090 (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

1

87383950

OPERATING CYLINDER

Contains Ref. 2-5

1шт.

2

87383948

ELECTRO-VALVE

1шт.

3

87644387

CYLINDER,60mm Rod, 146mm Stroke

1шт.

4

14420874

SCREW,M10 x 60mm, Cl 12.9

2шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.
