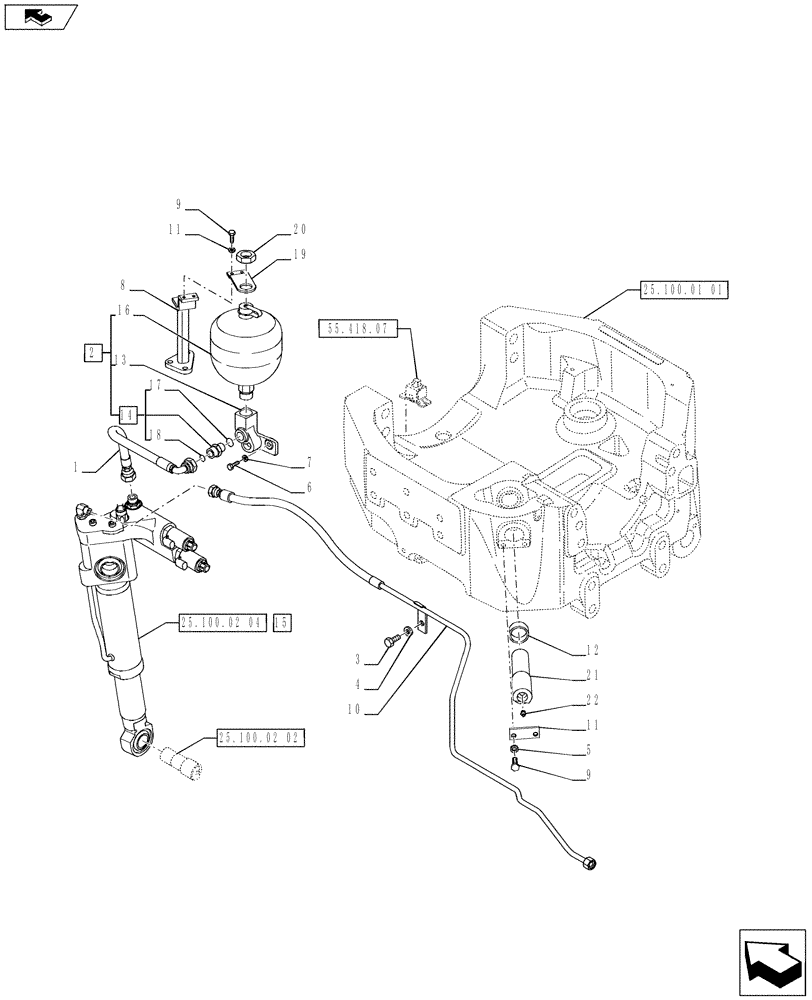

Запчасти Case IH PUMA 230 (25.100.02[03]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER, ACCUMULATOR AND PIPES - C7090 (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

1

87545810

HOSE

1шт.

2

87383951

Contains Ref. 13,14,26

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

10615879

LOCK WASHER,Serr, M12

1шт.

5

85700672

LOCK WASHER,M10

2шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

8

87340150

SUPPORT

1шт.

9

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

2шт.

10

87601956

HYD TUBE,12 mm OD

1шт.

11

82016870

BRACKET

1шт.

12

87340132

SPACER

1шт.

13

87545808

MANIFOLD

1шт.

14

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Contains Ref. 17,18

1шт.

15

87383950

OPERATING CYLINDER

ASSY

1шт.

16

87383952

ACCUMULATOR

1шт.

17

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

18

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

87340143

BRACKET

1шт.

20

87536932

THIN NUT

1шт.

21

87340133

PIN

1шт.

22

13407211

LUBE NIPPLE,M10 x 1

1шт.
