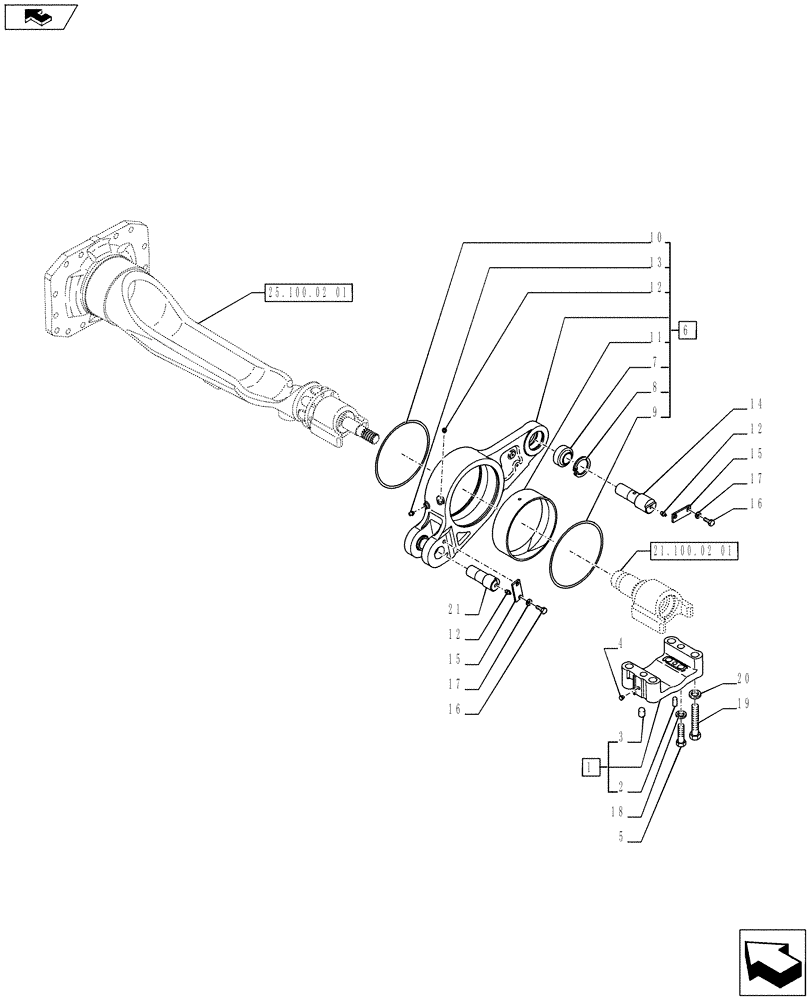

Запчасти Case IH PUMA 230 (25.100.02[02]) - CLASS 4 4WD FRONT AXLE WITH ACTIVE SUSPENSION SKY HOOK - SUPPORT - C7090 (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

1

87311709

BLOCK

Contains Ref. 2,3

1шт.

2

10837810

DOWEL,M12 x 30.00mm

2шт.

3

82020394

PIN,M18 x 30.00mm

2шт.

4

83908579

PLUG,M7.62

1шт.

5

14271974

BOLT,Hex, M18 x 1.5 x 60mm, Cl 12.9

M18 x 1.5 x 60

4шт.

6

87644382

SUPPORT

ASSY, Contains Ref. 7-13

1шт.

7

84263300

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm Thk

1шт.

8

11061076

SNAP RING,M62, Int

1шт.

9

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

10

14483280

O-RING,8.225" ID x 0.210"

1шт.

11

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

2шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

14

87305641

PIN,44mm OD x 136mm L

1шт.

15

82016870

BRACKET

2шт.

16

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

M10 x 1.5 x 20

4шт.

17

85700672

LOCK WASHER,M10

4шт.

18

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

19

11125874

BOLT,Hex, M20 x 105, 12.9

4шт.

20

82014831

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

21

87316813

PIN,40mm OD x 110mm L

1шт.
