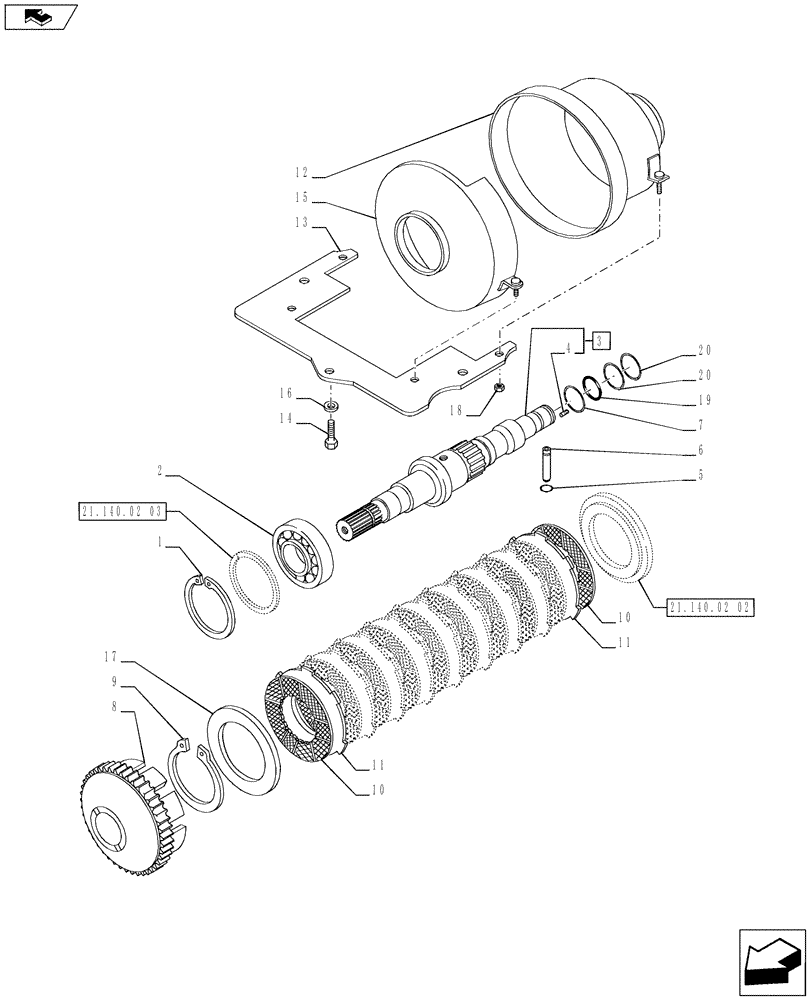

Запчасти Case IH PUMA 230 (21.140.02[01]) - 4WD ENGAGEMENT CLUTCH CONTROL - SHAFT AND DISKS (21) - TRANSMISSION

1

11061976

SNAP RING,M80, Int

1шт.

2

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

3

5195111

SHAFT

Contains Ref. 4

1шт.

4

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

5

14450581

O-RING,6.86mm ID x 1.78mm Width

1.78 x 6.86

1шт.

6

14516210

DOWEL,M7 x 45

1шт.

7

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

8

84162091

DRIVEN GEAR

1шт.

9

5139462

SNAP RING,3mm Thk

1шт.

10

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

10шт.

11

5143721

CLUTCH DRIVING PLATE,50T, 152.6mm OD

9шт.

12

87536650

SHIELD

1шт.

13

87536651

SHIELD

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

15

87536649

SHIELD

1шт.

16

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

47126552

CLUTCH PLATE

1шт.

18

15896214

NUT,M6, Cl 8

4шт.

19

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

20

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

2шт.
