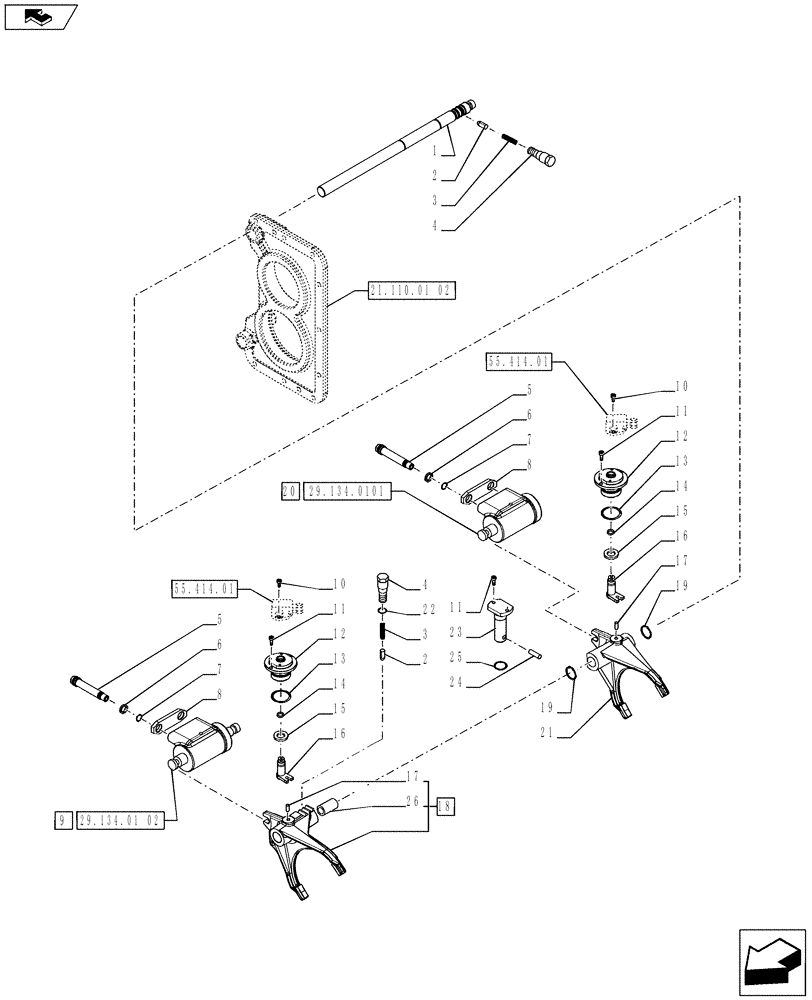

Запчасти Case IH PUMA 230 (21.126.0101[01]) - TRANSMISSION 50KPH & 40KPH "ECONOMY" CVT - RANGE GEARSHIFT MECHANISM - I, III, IV, R2 (VAR.743042-743142) (21) - TRANSMISSION

1

84295018

ROD

PUSH ROD

1шт.

2

5166394

PAWL,10mm OD x 25mm L

2шт.

3

5166393

SPRING,8mm OD x 43mm L

2шт.

4

87549975

PLUG,M18 x 1.5 x 62mm L

2шт.

5

87653476

HOLDER

Upper

4шт.

6

5115996

O-RING,2.62mm Thk x 15.08mm ID, 80 Duro

2.62 x 15.08

4шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

4шт.

8

87628829

SPACER,2x17mm OD x 8mm Thk x 95mm L

2шт.

9

87549884

OPERATING CYLINDER

1шт.

10

13272014

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8

4шт.

11

14305220

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

6шт.

12

87675305

HOLDER

2шт.

13

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

14

14452980

O-RING,9.25mm ID x 1.78" Width

2шт.

15

14497731

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

4.3 x 8 x 0.8

4шт.

16

87675304

SHAFT,9.4mm ID x 12mm OD x 47.5mm L

2шт.

17

10336010

PIN,6mm OD x 16mm L

6 x 16

2шт.

18

84150667

SHIFTER FORK

Range I - III, Contains Ref. 17,26

1шт.

19

87691166

CIRCLIP

D=24

2шт.

20

87549883

OPERATING CYLINDER

1шт.

21

87528756

SHIFTER FORK

IV - R2

1шт.

22

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

23

87653520

HOLDER

1шт.

24

87549871

PAWL,8.5mm OD x 34.5mm L

1шт.

25

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

26

87552010

BUSHING,24mm ID x 27mm OD x 30mm

2шт.
