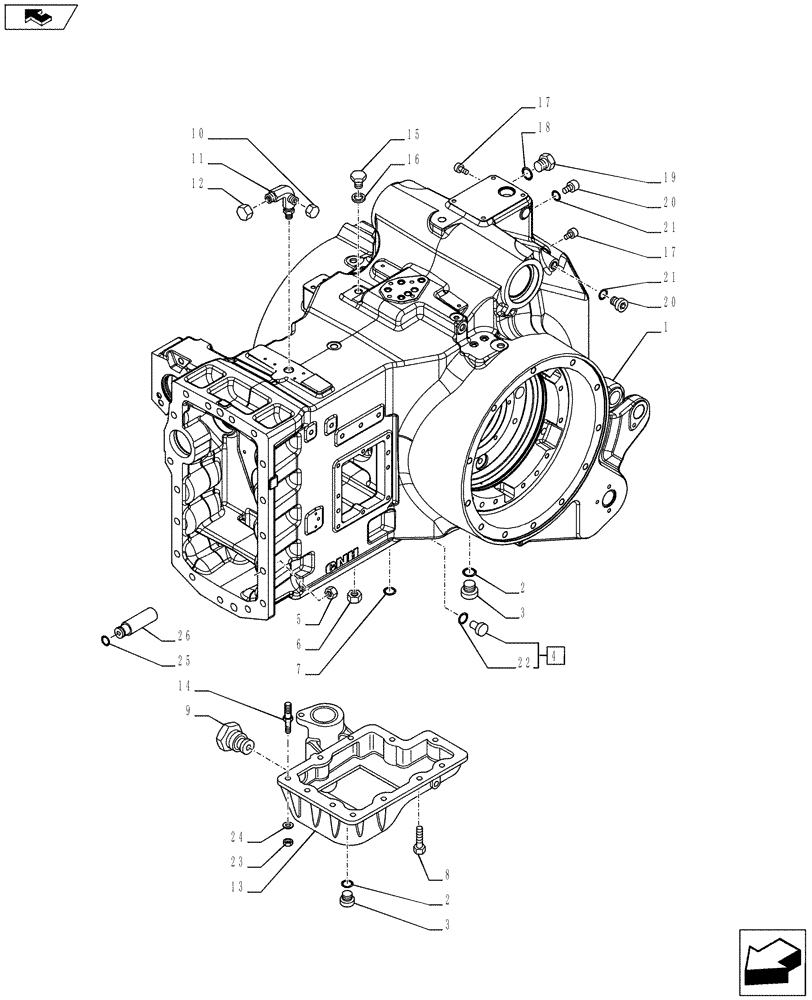

Запчасти Case IH PUMA 230 (21.118.01[01]) - TRANSMISSION BOX, COVERS AND CAPS (21) - TRANSMISSION

1

84316185

TRANSMISSION HOUSING

1шт.

2

14438285

O-RING,29.5mm ID x 3.0mm

2шт.

3

10119511

PLUG,M33 x 2 x 16, Cl5.8

2шт.

4

5185747

PLUG,1"13/16-12

Contains Ref. 22

1шт.

5

12164121

NUT,M16 x 1.5, Cl 10

17шт.

6

15896214

NUT,M6, Cl 8

4шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

7шт.

8

15541521

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

1шт.

8

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

1шт.

9

84253191

VALVE PRESSURE RELIE

1шт.

10

9840575

CAP,13/16" - 16 ORFS

2шт.

11

87608360

HYD CONNECTOR

1шт.

12

9840576

CAP,1" - 14 ORFS

1шт.

13

84134705

COVER

1шт.

14

84319210

STUD

2шт.

15

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

17

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

83957506

PLUG,3/4"

1шт.

20

10119411

PLUG,M18 x 1.5 x 12.00mm

3шт.

21

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

22

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

23

43362

NUT,M8 x 1.25, Cl 10

2шт.

24

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

25

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

26

84226973

HYD TUBE,10 mm ID x 20 mm OD x 80.5 mm L

2шт.
