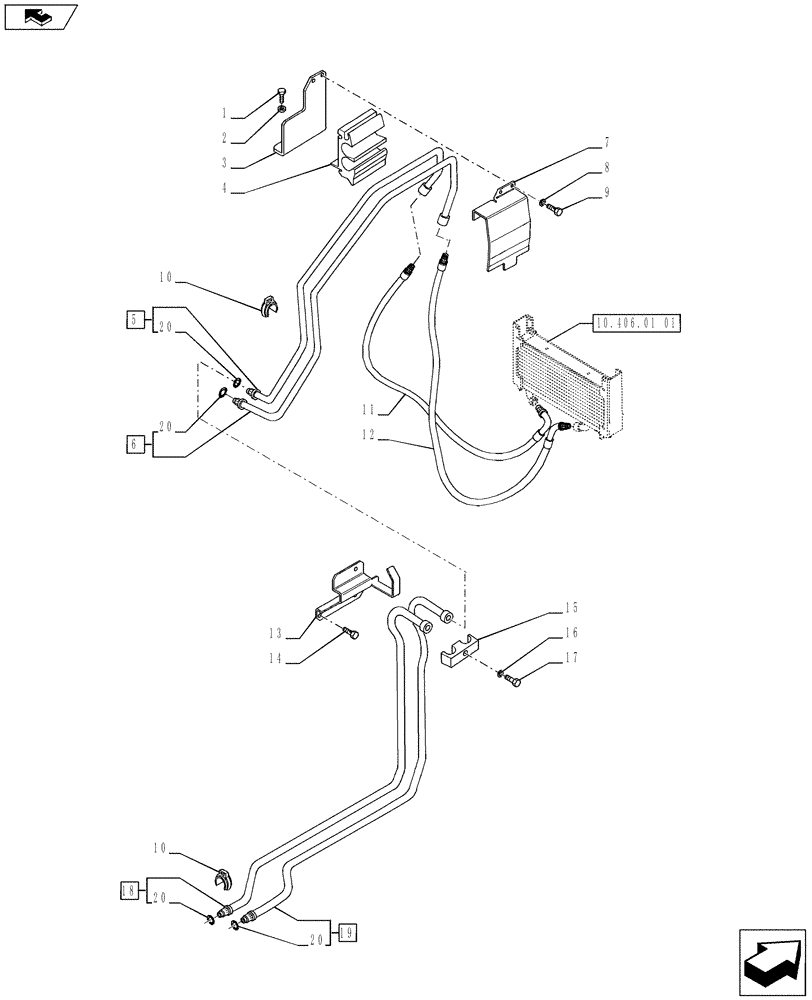

Запчасти Case IH PUMA 230 (21.109.01[01]) - TRANSMISSION OIL COOLER - PIPES AND SUPPORTS (21) - TRANSMISSION

1

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

3

87650542

BRACKET

1шт.

4

84123764

SUPPORT

1шт.

5

84156073

PIPE

Contains Ref. 20

1шт.

6

84156074

HYD TUBE

Contains Ref. 20

1шт.

7

87488159

BRACKET

1шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

10

84156015

CLIP,28mm LP

8шт.

11

84184075

HOSE,25.4mm ID x 805mm L, SAE 100R6

Incl. 20

1шт.

12

84184076

HOSE,28mm ID

Incl. 20

1шт.

13

87735471

BRACKET

1шт.

14

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

15

84211462

CLAMP BRACKET

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

18

84187432

TUBE

Contains Ref. 20

1шт.

19

84187431

TUBE

Contains Ref. 20

1шт.

20

84156021

O-RING,24mm ID x 2.0mm

8шт.
