Запчасти Case IH PUMA 230 (10.406.01[02A]) - RADIATOR, COOLING SYSTEM AND RELATED PARTS - D7127 (10) - ENGINE

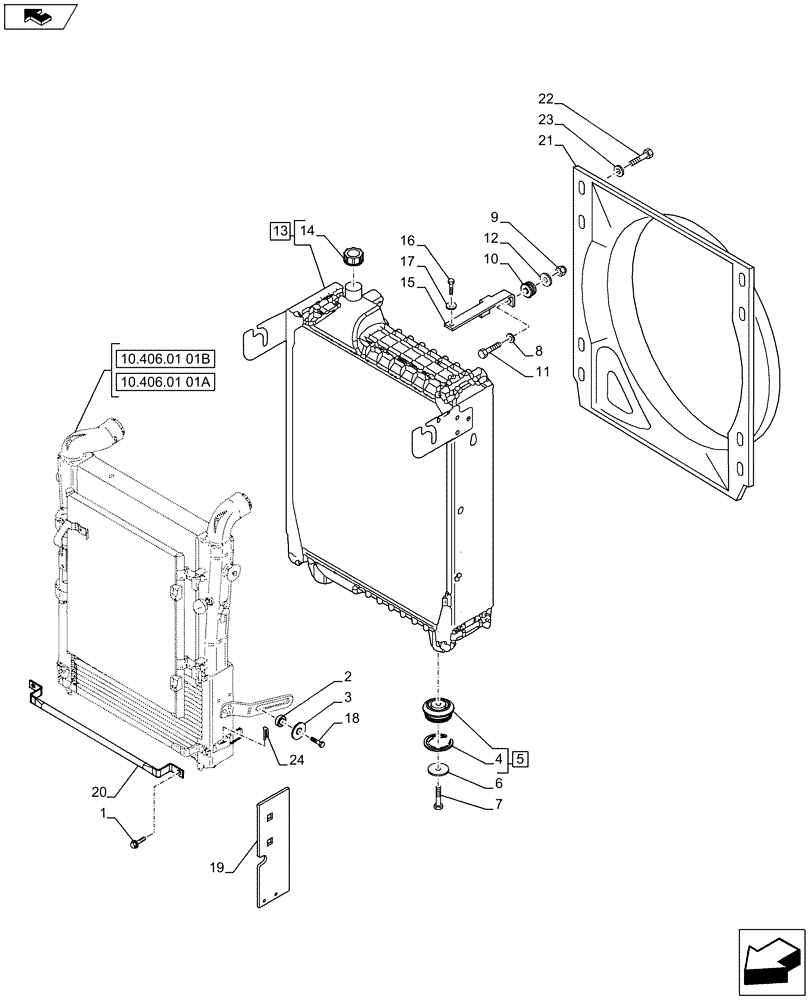

Схема запчастей Case IH PUMA 230 - (10.406.01[02A]) - RADIATOR, COOLING SYSTEM AND RELATED PARTS - D7127 (10) - ENGINE
10.406.01 01a
12
6
11
4
19
21
16
23
18
2
15
8
5
22
13
24
1
7
10
20
17
9
home
14
3
10.406.01 01b

Артикул

Название

Примечание

Количество

1

87581911

FLANGE BOLT,Hex, M6 x 25mm

4шт.

2

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

3

87385196

WASHER,8.5mm ID X 25mm OD X 2mm

2шт.

4

82033528

SNAP RING,55mm ID

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

Contains Ref. 4

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84249170

RADIATOR

Contains Ref. 14

1шт.

Only for PUMA 170 CVX/CVT

1шт.

13

84249173

RADIATOR

Contains Ref. 14

1шт.

Except for PUMA 170 CVX/CVT

1шт.

14

87306788

RADIATOR CAP

1шт.

15

87308170

BAR

1шт.

16

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

17

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

84192127

SEAL

2шт.

20

84185871

DEFLECTOR

1шт.

21

87565399

SHROUD

1шт.

22

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

23

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

24

81865839

COTTER PIN

1шт.

Выбрано товаров: 27
