(90.160.04) - PROTECTION FOR EXHAUST AND STEP

Запчасти Case IH PUMA 230 (90.160.04) - PROTECTION FOR EXHAUST AND STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

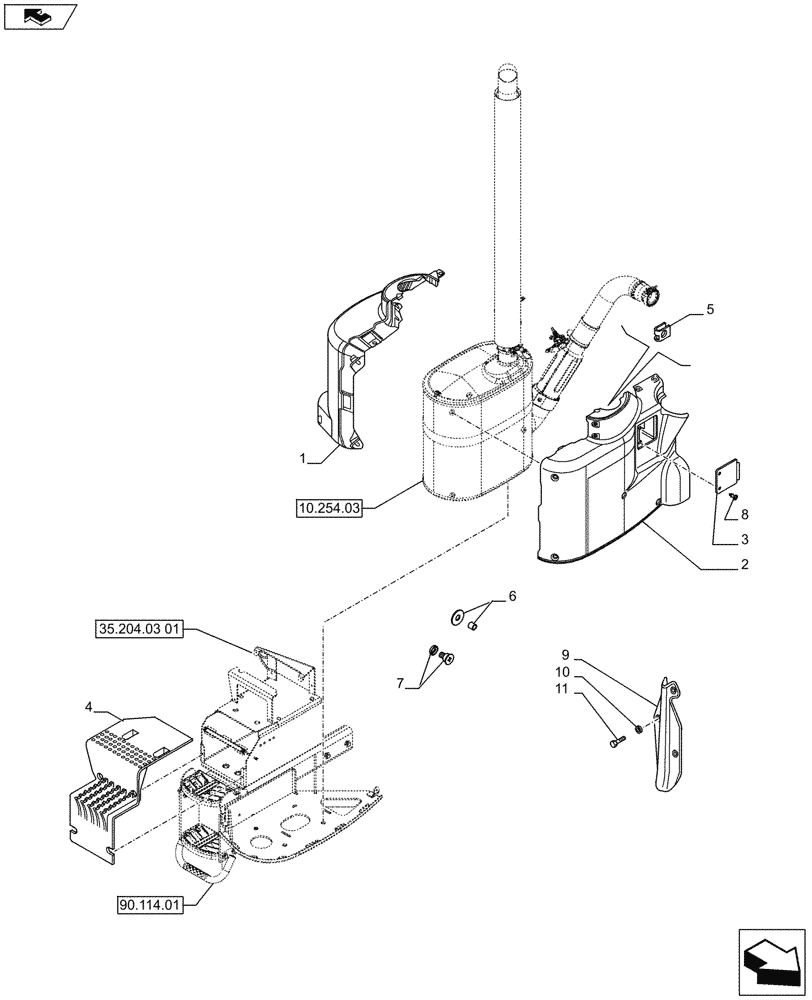

Схема запчастей Case IH PUMA 230 - (90.160.04) - PROTECTION FOR EXHAUST AND STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.01
2
5
9
11
1
6
8
home
4
3
10
7
10.254.03
35.204.03 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84403575

PROTECTIVE COVER

Rear

1шт.

2

84403574

TRIM

Front

1шт.

3

84301097

SOFT TRIM

1шт.

4

84370309

STEP

1шт.

5

14189071

SPRING NUT,M6

6шт.

6

84349035

BUSHING

Thermal Insulation

7шт.

7

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

Thermal Insulation

19шт.

8

16089877

SCREW,Spcl Tap, Pan Hd Phil, M4.50mm x 2.5 x 12mm

2шт.

9

84493346

COVER

1шт.

10

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

3шт.

11

1983571

HEX SOC SCREW,M5 x 12mm, Cl 10.9

3шт.

12

84399494

WASHER

Thermal Insulation

1шт.
