(90.160.0302) - CONTROLS COVER FOR LARGE TOUCH SCREEN VIRTUAL TERMINAL (VAR.743440-743834-743835)

Запчасти Case IH PUMA 230 (90.160.0302) - CONTROLS COVER FOR LARGE TOUCH SCREEN VIRTUAL TERMINAL (VAR.743440-743834-743835) (90) - PLATFORM, CAB, BODYWORK AND DECALS

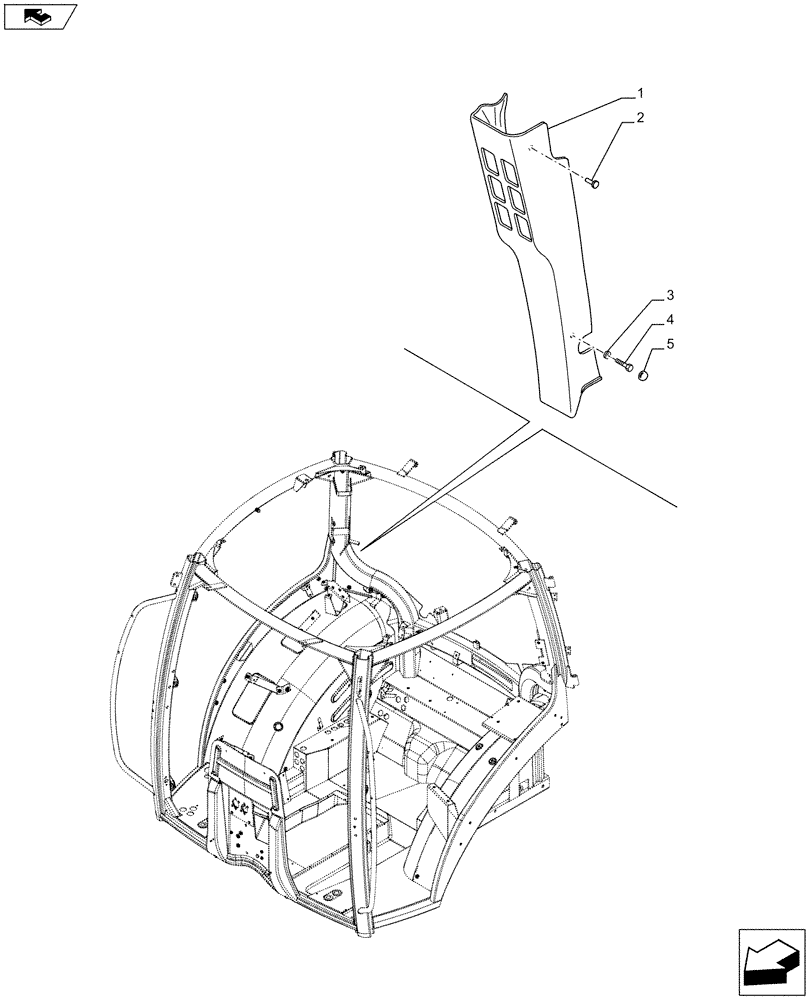

Схема запчастей Case IH PUMA 230 - (90.160.0302) - CONTROLS COVER FOR LARGE TOUCH SCREEN VIRTUAL TERMINAL (VAR.743440-743834-743835) (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84285943

PADDING

1шт.

2

83998841

STUD,7.85mm OD x 19.50mm L

3шт.

3

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

82012814

CAP,M10

2шт.
