(90.160.0301) - AUTOGUIDANCE SYSTEM READY - CONTROLS COVER AND RELATIVE PARTS (VAR.743332 / 743609, VAR.743348 / 743610)

Запчасти Case IH PUMA 230 (90.160.0301) - AUTOGUIDANCE SYSTEM READY - CONTROLS COVER AND RELATIVE PARTS (VAR.743332 / 743609, VAR.743348 / 743610) (90) - PLATFORM, CAB, BODYWORK AND DECALS

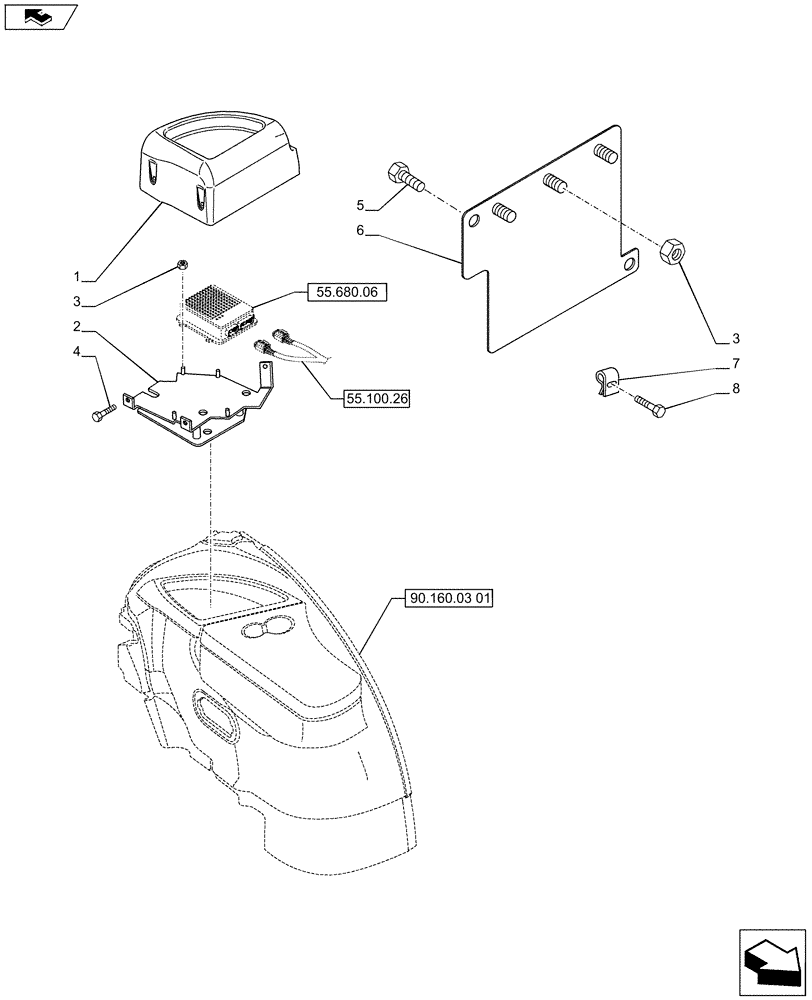

Схема запчастей Case IH PUMA 230 - (90.160.0301) - AUTOGUIDANCE SYSTEM READY - CONTROLS COVER AND RELATIVE PARTS (VAR.743332 / 743609, VAR.743348 / 743610) (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
2
7
3
3
8
90.160.03 01
home
55.680.06
55.100.26
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84238871

CAB STORAGE BOX

LH, Rear

1шт.

2

87679455

SUPPORT

1шт.

3

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

7шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

M6 x 16

3шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

6

87744795

SUPPORT

1шт.

7

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
