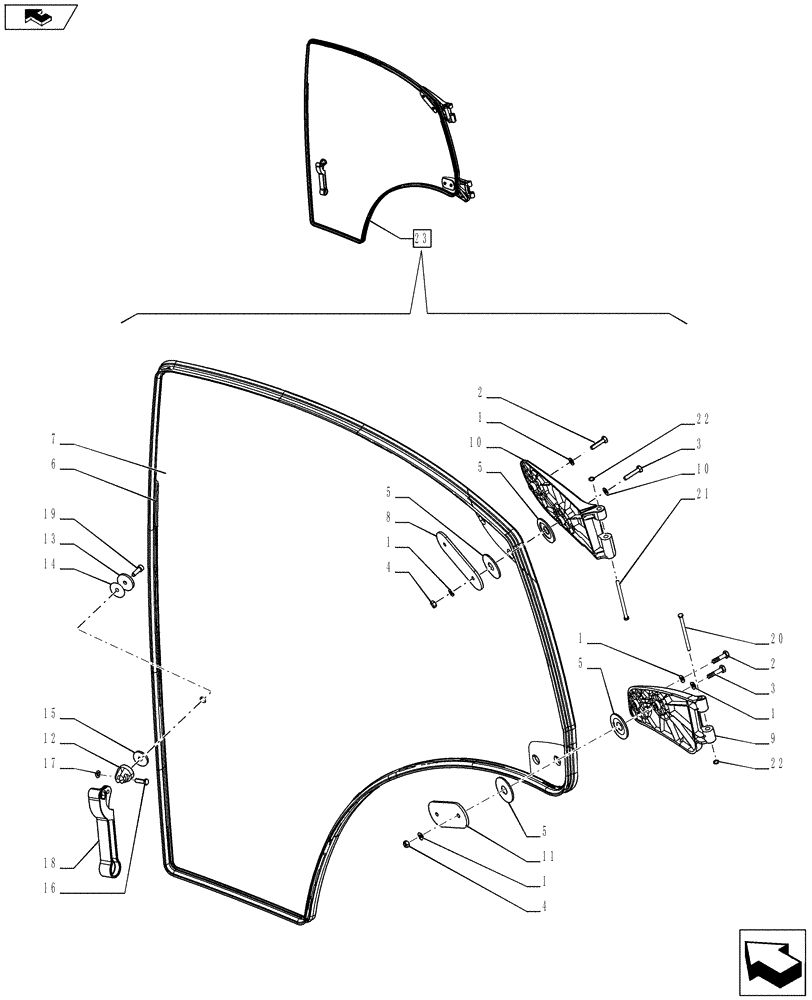

Запчасти Case IH PUMA 230 (90.154.01[01]) - RIGHT HAND CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

8шт.

2

84187827

SCREW,Torx Pan Hd, M8 x 35mm, Cl 8.8

2шт.

3

84193284

SCREW,Torx Pan Hd, M8 x 40mm, Cl 8.8

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

4шт.

5

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

8шт.

6

84275610

WEATHERSTRIP

1шт.

7

84281439

CAB GLASS ASSY

1шт.

8

82038964

PLATE

1шт.

9

82037855

HINGE

1шт.

10

82037854

HINGE

1шт.

11

82037853

PLATE

1шт.

12

82038983

HINGE

1шт.

13

82038984

WASHER,Plastic, 8mm ID x 40mm OD x 10mm Thk

1шт.

14

82038985

PACKING RING,8.5mm ID x 37mm OD x 1mm Thk

1шт.

15

82038986

PACKING RING,10.2mm ID x 36mm OD x 10mm L

1шт.

16

82038987

PIN

1шт.

17

82038988

CIRCLIP

1шт.

18

87363359

HANDLE

1шт.

19

9806833

LOCK BOLT,Prev Torque, Hex, M8 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

20

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

21

82029159

PIN,9.8mm OD x 129mm L

1шт.

22

11087971

CIRCLIP,M8

2шт.

23

NSS

NOT SOLD SEPARAT

ASSY, RH, Contains Ref. 1 - 22

1шт.

Std. Equipments for Models with Mechanical Remotes

1шт.

Var. 720635-743043-743427

1шт.
