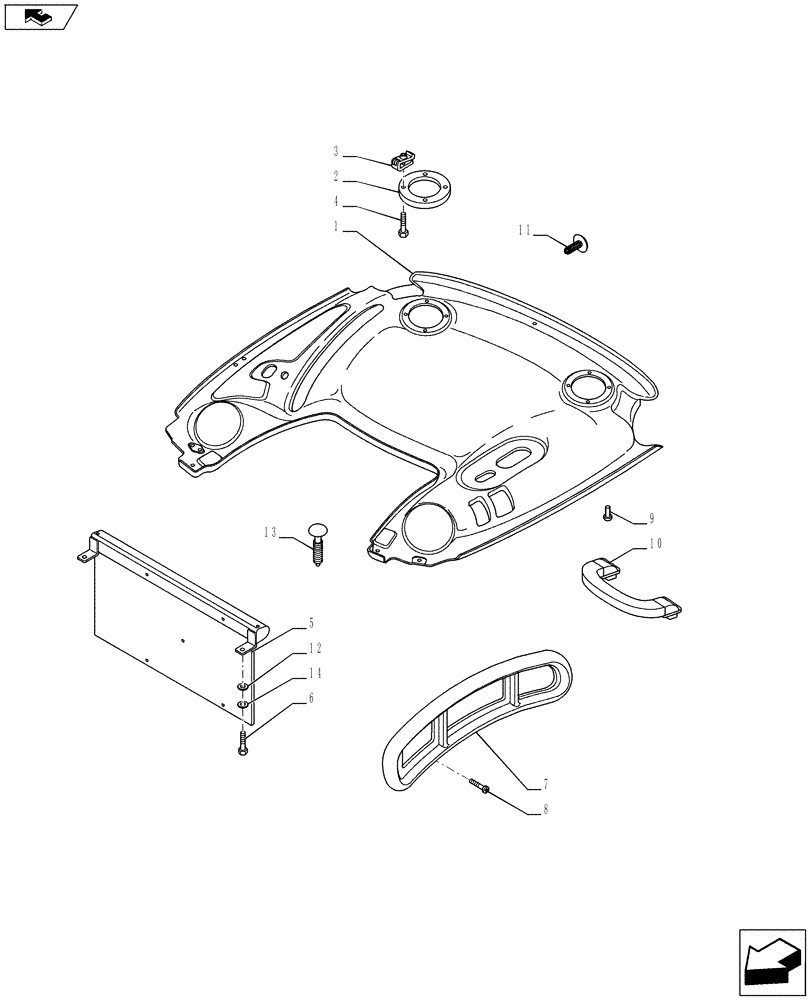

Запчасти Case IH PUMA 230 (90.150.0302[04]) - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER (VAR.728070-729096-729097-743229-743628) - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87521214

ROOF LINING

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

2шт.

7

87673408

CONSOLE

Wheat

1шт.

Deluxe Cab with High Visibility Window, VAR.729096-729097

1шт.

7

87673403

CONSOLE

1шт.

Deluxe Cab with High Visibility Window with Electric Telescopic Shatterproof Mirrors, VAR.728070-743229

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

10

84227380

HANDLE

Grey

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

12

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

14

12605274

WASHER

2шт.
