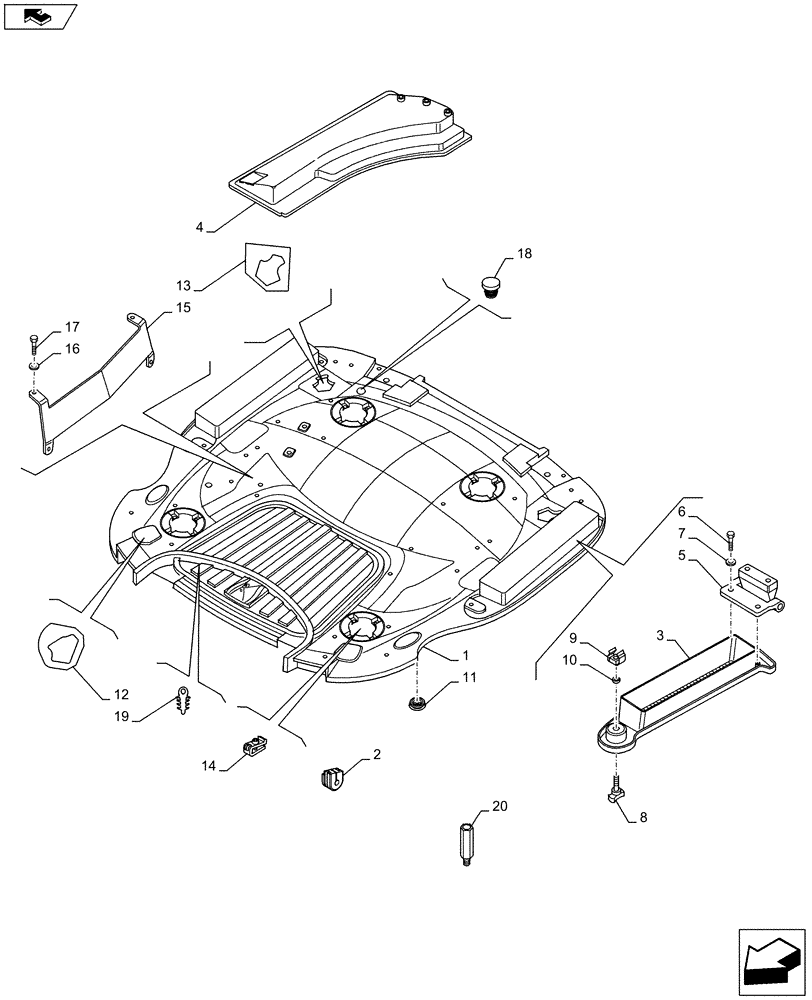

Запчасти Case IH PUMA 230 (90.150.0301[02]) - DELUXE CAB WITH HEATER AND AIR CONDITIONING LESS HIGH VISIBILITY PANEL - FRAME - NA (STD+VAR.729095-743228) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84276881

ROOF FRAME

1шт.

2

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

3

87725999

SUPPORT

RH

1шт.

3

82033661

SUPPORT

LH

1шт.

4

87355892

FILTER COVER

RH

1шт.

4

87398509

FILTER COVER

LH

1шт.

5

82033690

HINGE

LH

1шт.

5

82033679

HINGE

RH

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

84516592

KNOB

2шт.

9

87541213

NUT,Cage, M8

2шт.

10

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

11

82032318

PLUG

2шт.

12

82023417

GASKET,10mm Thk, Black

1шт.

12

82025910

GASKET,10 Thk, Black

1шт.

13

82038034

INSULATION

1шт.

13

82038033

GASKET,10mm Thk

1шт.

14

81872135

NUT,Retaining, M4.20

16шт.

15

84151173

HOLDER

1шт.

16

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

17

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

M6 x 1 x 12

2шт.

18

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

19

87540957

RUBBER SEAL,1500mm L

1шт.

20

84592819

SPACER

3шт.
