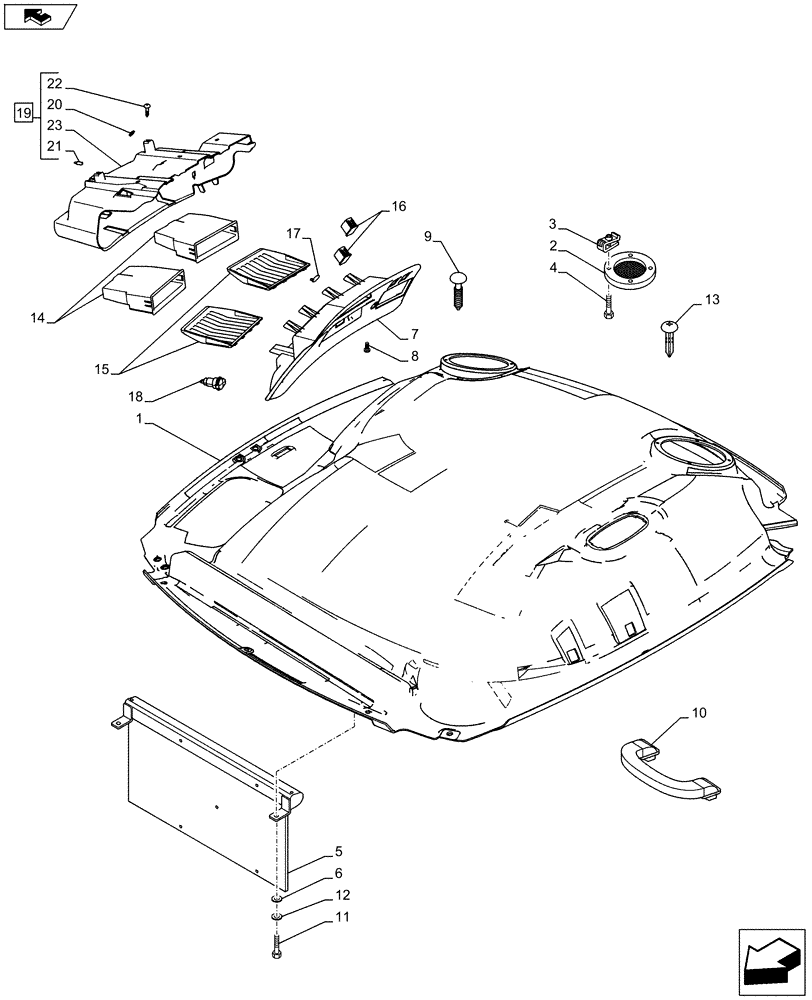

Запчасти Case IH PUMA 230 (90.150.03[03A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILTY PANEL - HEADLINER - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47365206

HEADLINER

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

7

47388509

BEZEL

Wheat, Serial Range: -C7408

1шт.

Standard Equipment

1шт.

7

47575526

CONSOLE

Wheat, Serial Range: D7408-C7410

1шт.

Standard Equipment

1шт.

7

47778962

CONSOLE

Wheat, Start Serial: D7410

1шт.

Standard Equipment

1шт.

7

47363735

BEZEL

, Serial Range: -C7408

1шт.

Deluxe Cab with Electric Telescopic Shatterproof Mirrors, VAR.743228-743227

1шт.

7

47406288

CONSOLE

, Serial Range: D7408-C7410

1шт.

Deluxe Cab with Electric Telescopic Shatterproof Mirrors, VAR.743228-743227

1шт.

7

47778953

CONSOLE

, Start Serial: D7410

1шт.

Deluxe Cab with Electric Telescopic Shatterproof Mirrors, VAR.743228-743227

1шт.

8

15688375

SCREW,Pan HD, M4.8 x 1.6 x 16mm

4шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

10

82035643

HANDLE

Grey

1шт.

11

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

2шт.

12

12605274

WASHER

2шт.

13

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

14

47364183

BOX

2шт.

15

47470835

INSERT

2шт.

16

82022763

PLUG

2шт.

17

47363750

PLUG,23.1mm OD

1шт.

18

84320279

CIGARETTE LIGHTER

1шт.

19

47378856

CAB STORAGE BOX

ASSY, Incl 20 - 23, Serial Range: -C7408

1шт.

19

47718243

BEZEL

ASSY, Incl 20 - 23, Start Serial: D7408

1шт.

20

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

21

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

22

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

3шт.

23

NSS

NOT SOLD SEPARAT

Carrier, Incl in 19

1шт.
