(90.150.02[02]) - REAR CAB SUPPORTS

Запчасти Case IH PUMA 230 (90.150.02[02]) - REAR CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

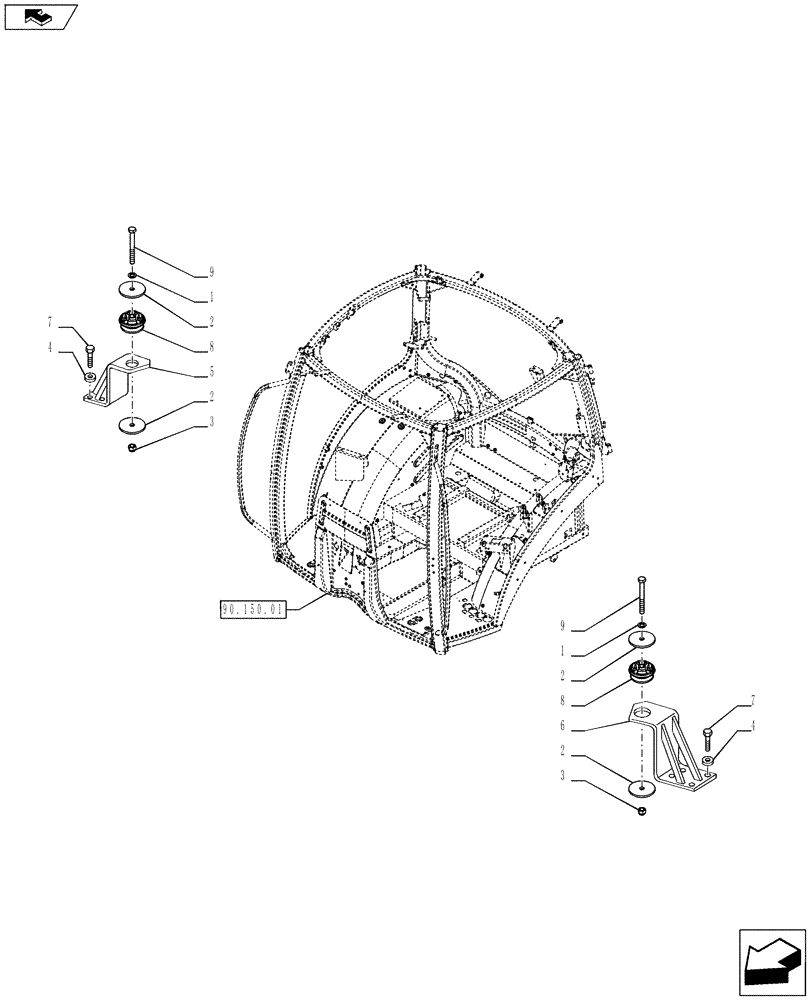

Схема запчастей Case IH PUMA 230 - (90.150.02[02]) - REAR CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
7
1
2
7
2
6
4
4
9
2
5
8
8
1
3
3
9
90.150.01
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14497101

WASHER,M20 x 37 x 3

2шт.

2

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

3

12575111

LOCK NUT,M20 x 1.5, Cl 8

2шт.

4

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

5

82035565

SUPPORT

1шт.

6

82035563

SUPPORT

1шт.

7

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

8

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

9

15990721

BOLT,Hex, M20 x 1.5 x 180mm, Cl 8.8

2шт.
