Запчасти Case IH PUMA 225 (1.40.2/10[02]) - (VAR.463) FRONT AXLE WITH ACTIVE SUSPENSIONS - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING

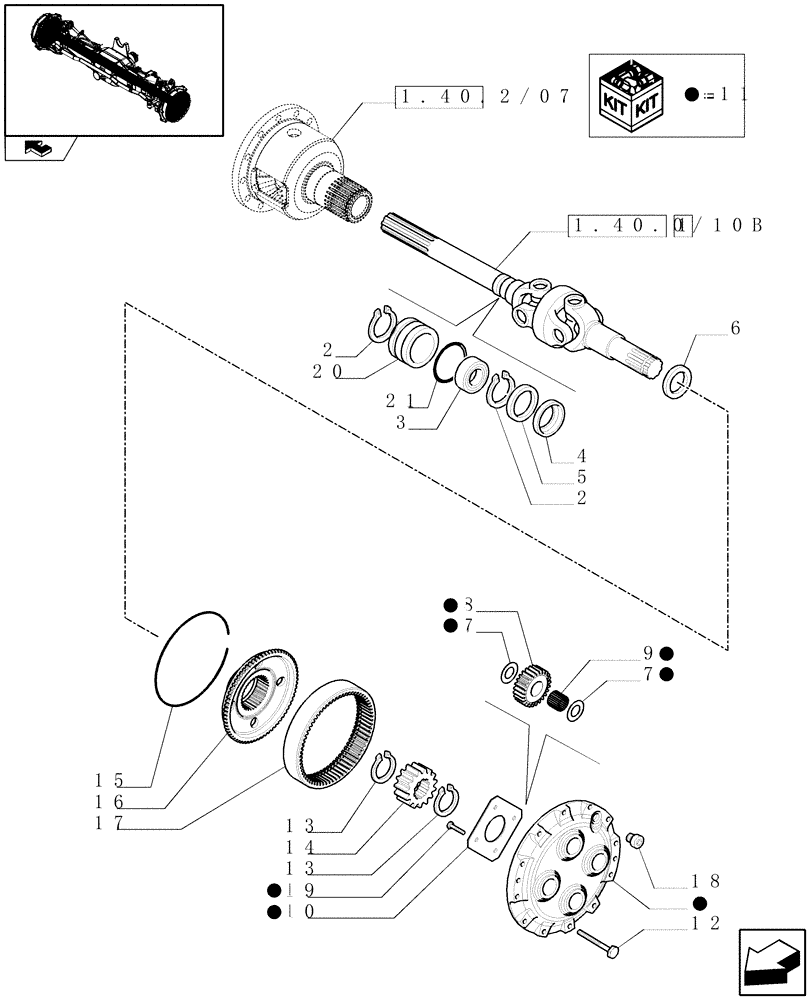

Схема запчастей Case IH PUMA 225 - (1.40.2/10[02]) - (VAR.463) FRONT AXLE WITH ACTIVE SUSPENSIONS - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING
21
11
6
7
11
15
12
7
13
8
11
14
13
2
11
11
4
11
11
5
19
9
16
20
1
3
11
1.40.0/10b
17
10
home
1.40.2/07
18
11
2

Артикул

Название

Примечание

Количество

1

84184133

AXLE-SHAFT, ARTICULA

LH

1шт.

1

84184130

AXLE-SHAFT, ARTICULA

RH

1шт.

2

11061376

SNAP RING,M68, Int

2шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27

2шт.

7

87576870

THRUST WASHER

8шт.

8

87576871

IDLER PINION

4шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

Pkg Qty 27

4шт.

10

87576876

PLATE

1шт.

11

87576872

PLANETARY REDUCER

2шт.

12

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

5136819

PLANETARY GEAR

, Serial Range: -C6581

2шт.

14

84262815

PLANETARY GEAR

, Start Serial: D6581

2шт.

15

4986355

CIRCLIP

2шт.

16

5141691

DISC

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

19

14274431

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

4шт.

20

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

2шт.

21

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

Выбрано товаров: 23
