(1.40.0/10[02]) - FRONT AXLE - AXLE SHAFTS AND EPICICLIC REDUCERS

Запчасти Case IH PUMA 225 (1.40.0/10[02]) - FRONT AXLE - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING

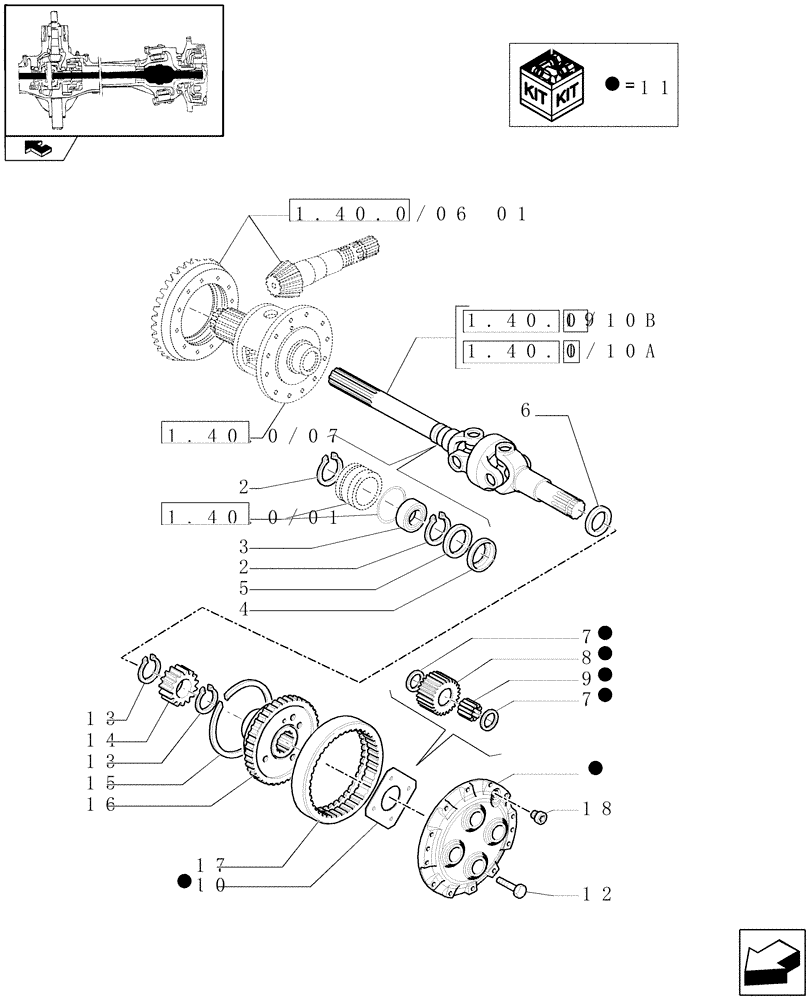

Схема запчастей Case IH PUMA 225 - (1.40.0/10[02]) - FRONT AXLE - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING
12
2
14
3
11
18
19
11
4
7
13
10
11
7
11
11
13
11
1
5
8
9
2
15
6
16
17
11
1.40.0/01
11
1.40.0/10b
1.40.0/10a
1.40.0/06 01
home
1.40.0/07
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191696

AXLE-SHAFT, ARTICULA

LH, Serial Range: -C6353

1шт.

1

5191697

AXLE-SHAFT, ARTICULA

RH, Serial Range: -C6353

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12, Serial Range: -C6353

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16, Start Serial: D6353

2шт.

6

5183845

SEAL

, Serial Range: -C6353

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27, Start Serial: D6353

2шт.

7

87576870

THRUST WASHER

16шт.

8

87576871

IDLER PINION

8шт.

9

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

Pkg Qty 27

8шт.

10

87576876

PLATE

2шт.

11

87576872

PLANETARY REDUCER

2шт.

12

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

5136819

PLANETARY GEAR

, Serial Range: -C6581

2шт.

14

84262815

PLANETARY GEAR

, Start Serial: D6581

2шт.

15

4986355

CIRCLIP

2шт.

16

5141691

DISC

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

19

84184133

AXLE-SHAFT, ARTICULA

LH, Start Serial: D6353

1шт.

19

84184130

AXLE-SHAFT, ARTICULA

RH, Start Serial: D6353

1шт.
