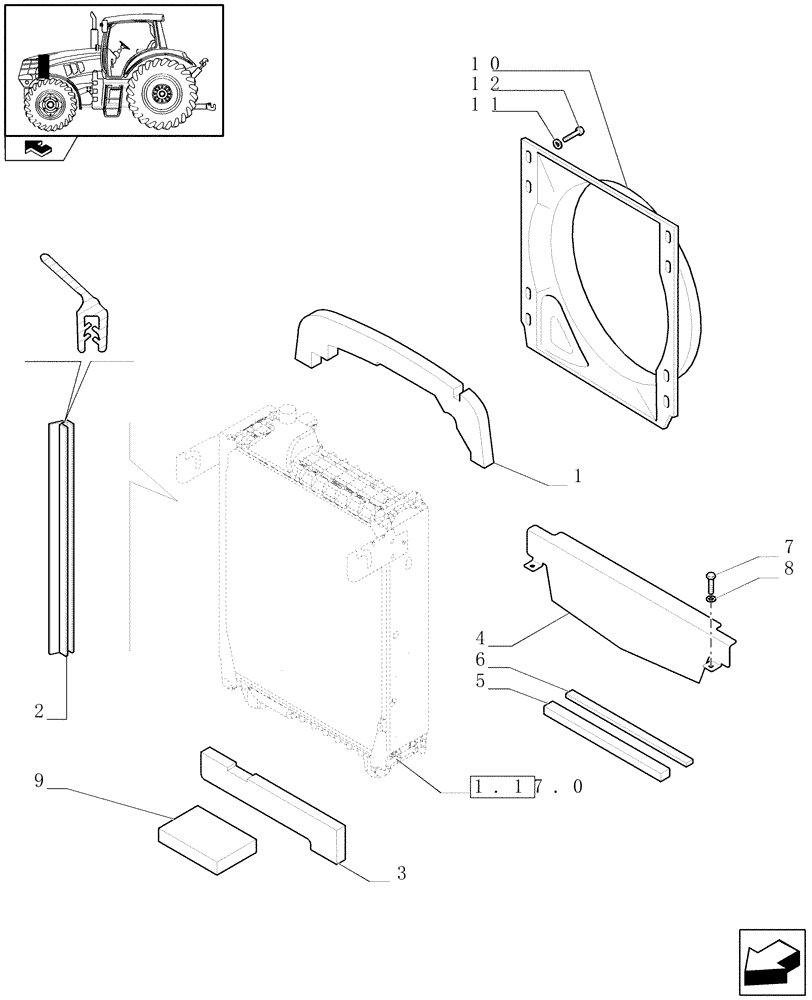

Запчасти Case IH PUMA 225 (1.17.5) - RADIATOR DUCT AND SEALS (02) - ENGINE EQUIPMENT

1

82038279

SEAL

Case hood to Air Duct

1шт.

2

82039110

SEAL

Hood to Radiator Side

2шт.

3

87380756

FOAM INSULATION

Radiator, Serial Range: Side-Hood

2шт.

4

82038426

DEFLECTOR

Radiator Baffle Plate (PTD)

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

680MM, Blaffe, Serial Range: Plate-Supt

1шт.

5

87580269

SEAL

Ecu to Air Intake

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM, Rad to Baffle Plate

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

Radiator Air Side

2шт.

10

87565399

SHROUD

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

12

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.
