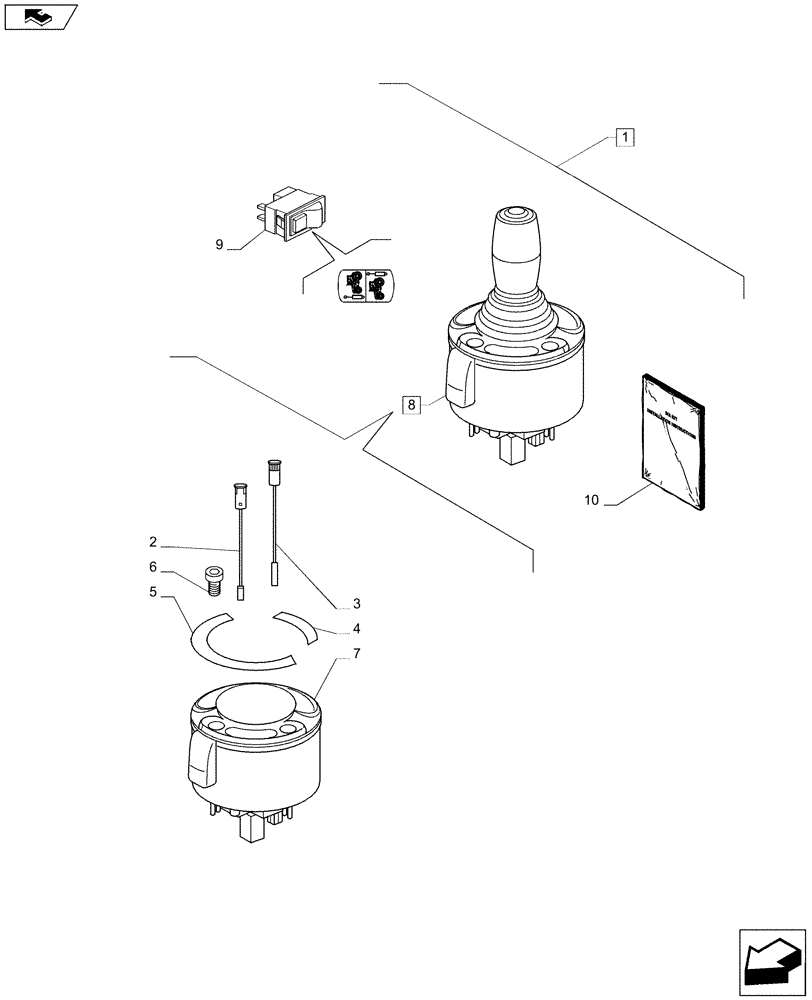

Запчасти Case IH PUMA 215 (88.055.20) - DIA KIT - CONFIGURABLE JOYSTICK CONTROL - BREAKDOWN (88) - ACCESSORIES

1

718218014

DIA KIT, TRACTOR

Configurable Joystick Control, Contains Ref. 2-9 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84265788

INSTRUMENT LIGHT

Rear

1шт.

3

84265787

INSTRUMENT LIGHT

Front

1шт.

4

87330703

DECAL

Joystick Led

1шт.

5

87330704

DECAL

Joystick

1шт.

6

15643001

SCREW,Pozidriv Pan Hd, M3.5 x 1.3 x 25mm

7шт.

7

87619503

HOUSING

1шт.

8

84261736

JOYSTICK

Contains Ref. 2-7

1шт.

9

87573085

SWITCH ASSY

1шт.

10

82998997

INSTRUCTION

1шт.
