(88.055.19[04]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL - COVER

Запчасти Case IH PUMA 215 (88.055.19[04]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL - COVER (88) - ACCESSORIES

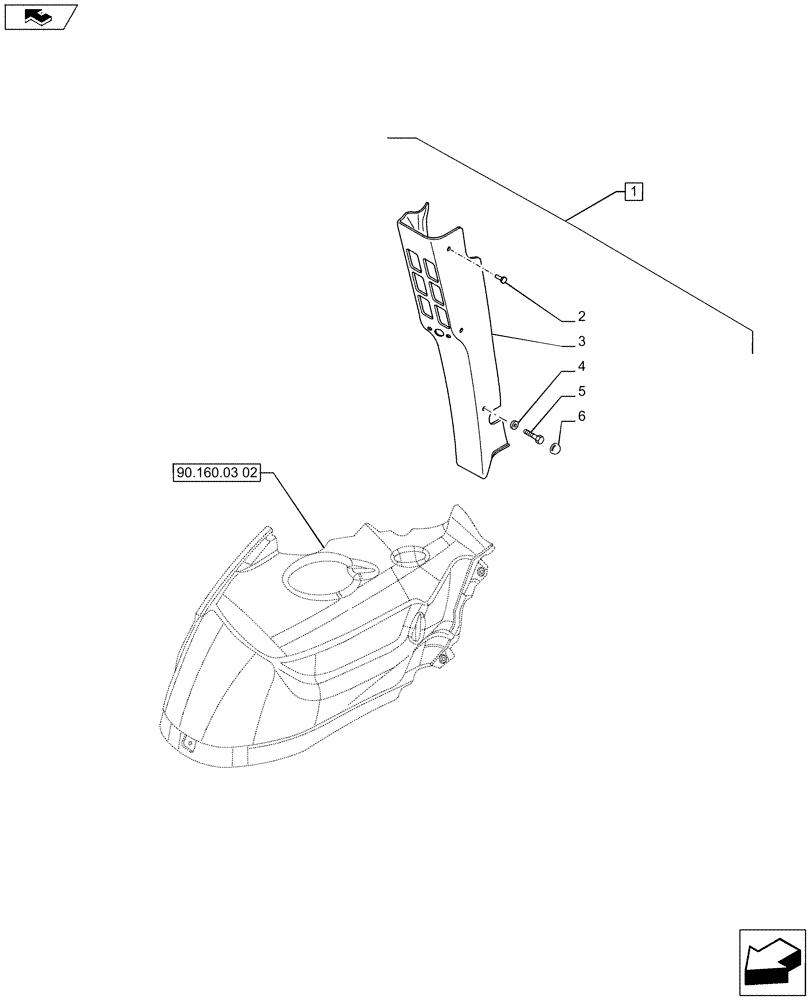

Схема запчастей Case IH PUMA 215 - (88.055.19[04]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL - COVER (88) - ACCESSORIES
90.160.03 02
home
4
3
2
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719258154

DIA KIT, TRACTOR

Predisposition for Virtual Terminal, Contains Ref. 2-6, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

3

84285944

PADDING

1шт.

4

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

6

82012814

CAP,M10

2шт.
