(88.055.10[02]) - DIA KIT - ELECTRICALLY CONTROLLED BATTERY ISOLATOR

Запчасти Case IH PUMA 215 (88.055.10[02]) - DIA KIT - ELECTRICALLY CONTROLLED BATTERY ISOLATOR (88) - ACCESSORIES

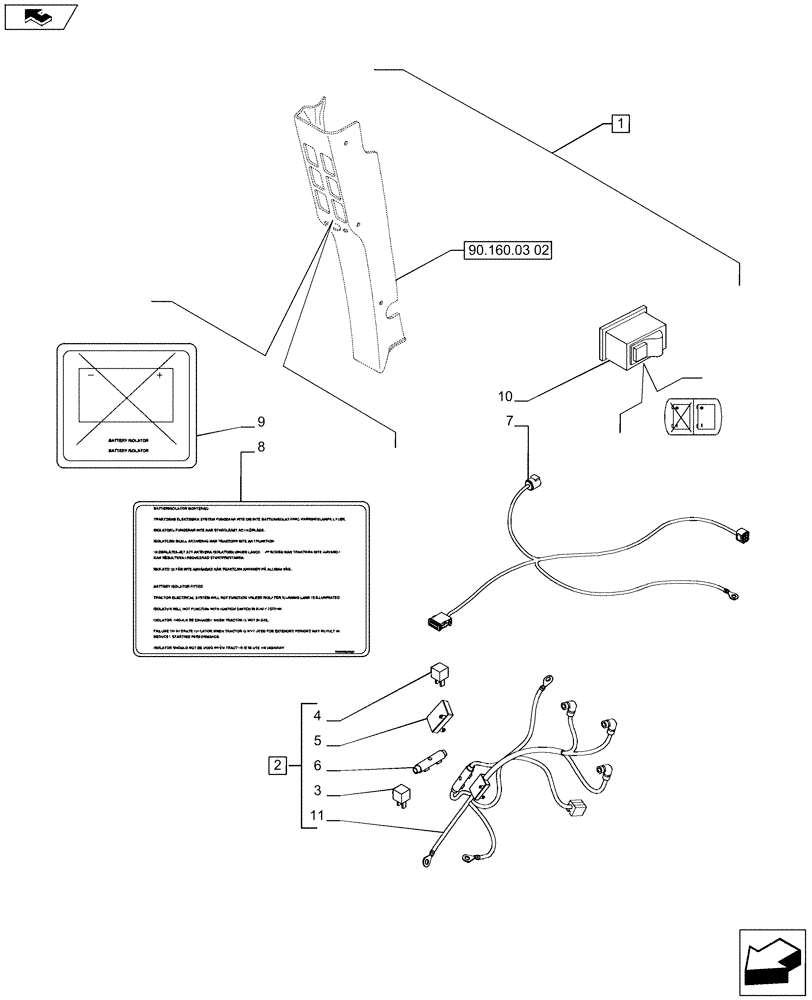

Схема запчастей Case IH PUMA 215 - (88.055.10[02]) - DIA KIT - ELECTRICALLY CONTROLLED BATTERY ISOLATOR (88) - ACCESSORIES
11
2
1
8
7
3
10
6
90.160.03 02
home
9
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719752024

DIA KIT, TRACTOR

Electrically Controlled Battery Isolator, Contains Ref. 2-10

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84249202

WIRE HARNESS

To Cab, Contains Ref. 3-6,11

1шт.

3

84174069

FUSE,250A

250AMP

1шт.

4

84174070

FUSE,30A, Orange

30AMP

1шт.

5

84175730

FUSE HOLDER

30A

1шт.

6

82027575

FUSE HOLDER

250A

1шт.

7

87639178

WIRE HARNESS

Control

1шт.

8

82034481

DECAL

1шт.

9

82034482

DECAL

1шт.

10

87392866

SWITCH ASSY

Battery Isolator

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.
