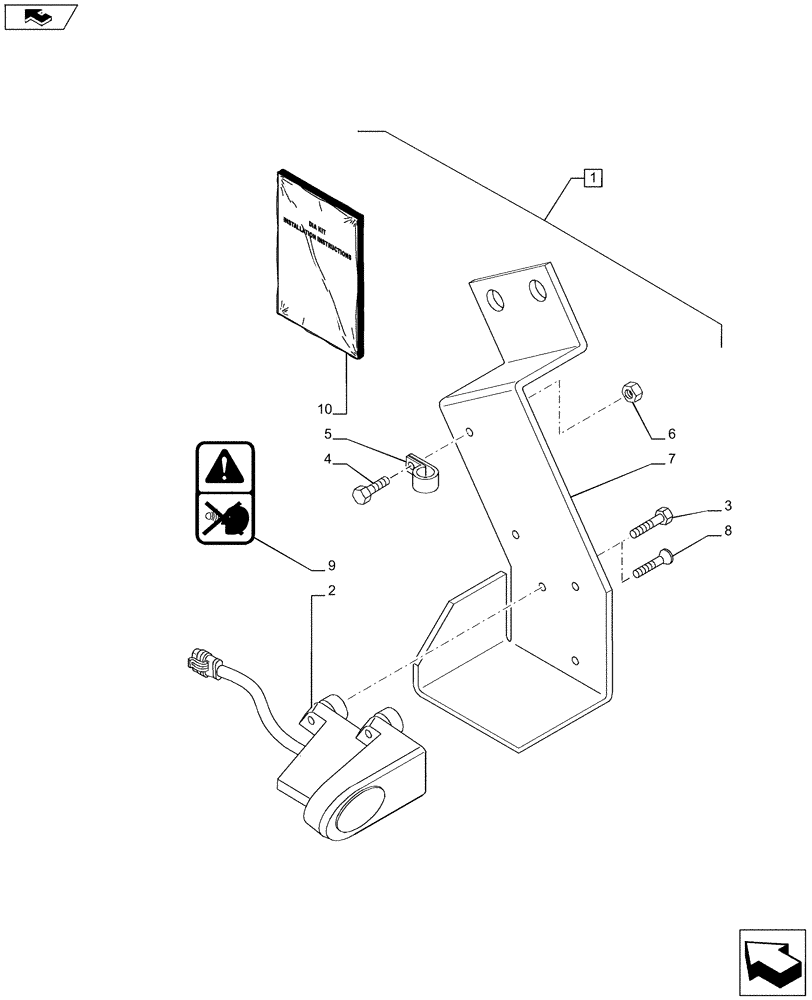

Запчасти Case IH PUMA 215 (88.055.03) - DIA KIT - GROUND SPEED SENSOR (UK) (88) - ACCESSORIES

1

710058024

DIA KIT, TRACTOR

Ground speed sensor for UK, Contains Ref. 2-9 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87367898

RADAR

1шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

5

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

6

12574211

NUT,M6 x 1, Cl 8

2шт.

7

84293407

BRACKET

1шт.

8

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

3шт.

9

82002071

DECAL

Radar Warning

1шт.

10

84133095

INSTRUCTION

1шт.
