(88.037.12) - DIA KIT - REAR WHEEL WEIGHTS (2 X 227 KG)

Запчасти Case IH PUMA 215 (88.037.12) - DIA KIT - REAR WHEEL WEIGHTS (2 X 227 KG) (88) - ACCESSORIES

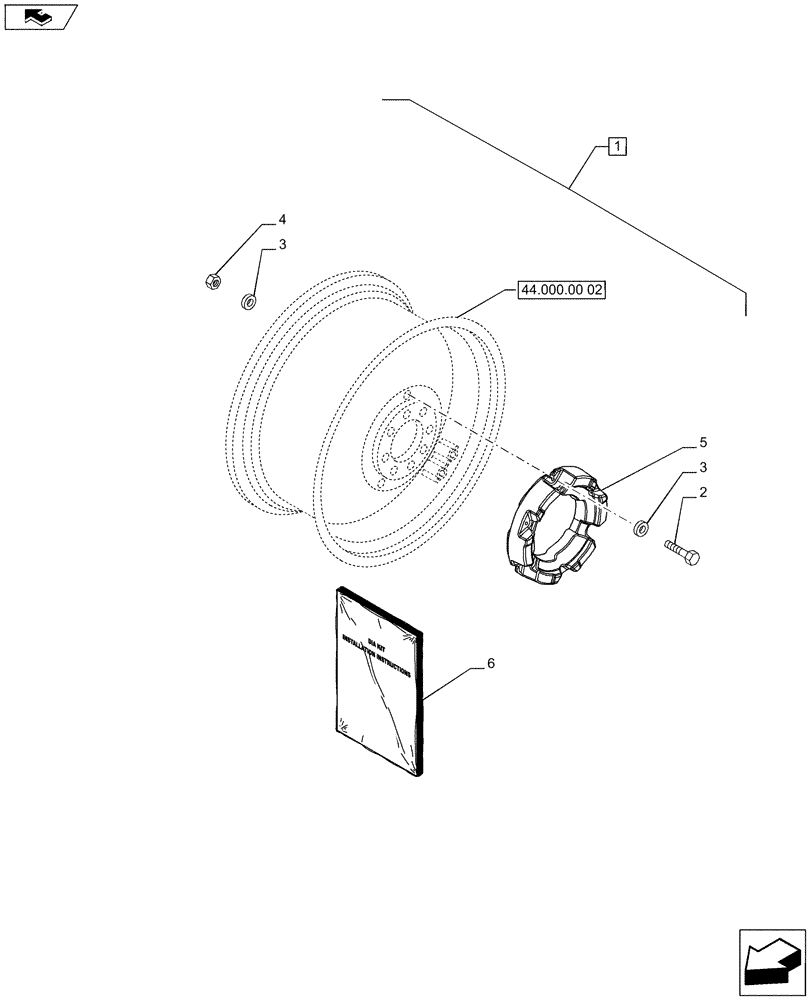

Схема запчастей Case IH PUMA 215 - (88.037.12) - DIA KIT - REAR WHEEL WEIGHTS (2 X 227 KG) (88) - ACCESSORIES
1
5
3
44.000.00 02
home
4
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719673006

DIA KIT, TRACTOR

Rear Wheel Weights 2x500 Lbs/227 Kg, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

6шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

412066

NUT,M16 x 2.0, Cl 8

6шт.

5

87310406

WHEEL WEIGHT

500 Lbs - 227 kg

2шт.

6

87485324

INSTRUCTION

1шт.

Выбрано товаров: 7
