(88.035.01) - DIA KIT - HYDRAULIC OIL FREE FLOW RETURN PIPE

Запчасти Case IH PUMA 215 (88.035.01) - DIA KIT - HYDRAULIC OIL FREE FLOW RETURN PIPE (88) - ACCESSORIES

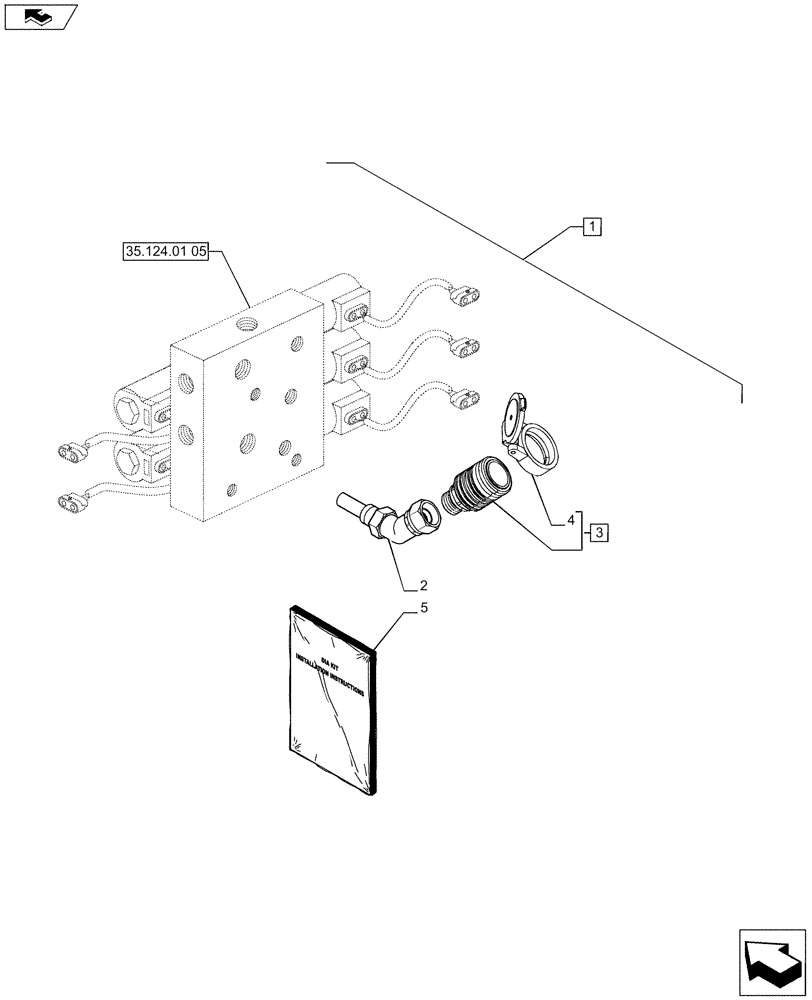

Схема запчастей Case IH PUMA 215 - (88.035.01) - DIA KIT - HYDRAULIC OIL FREE FLOW RETURN PIPE (88) - ACCESSORIES
1
2
5
35.124.01 05
home
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719979014

DIA KIT, TRACTOR

Hydraulic Oil Free Flow Return Pipe Kit, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84175578

PIPE FITTING

1шт.

3

87301571

QUICK MALE COUPLING,M22 x 1.5

1шт.

4

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

1шт.

5

84154815

INSTRUCTION

1шт.
