(88.033.07[04]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - LOGIC VALVE DELIVERY PIPE

Запчасти Case IH PUMA 215 (88.033.07[04]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - LOGIC VALVE DELIVERY PIPE (88) - ACCESSORIES

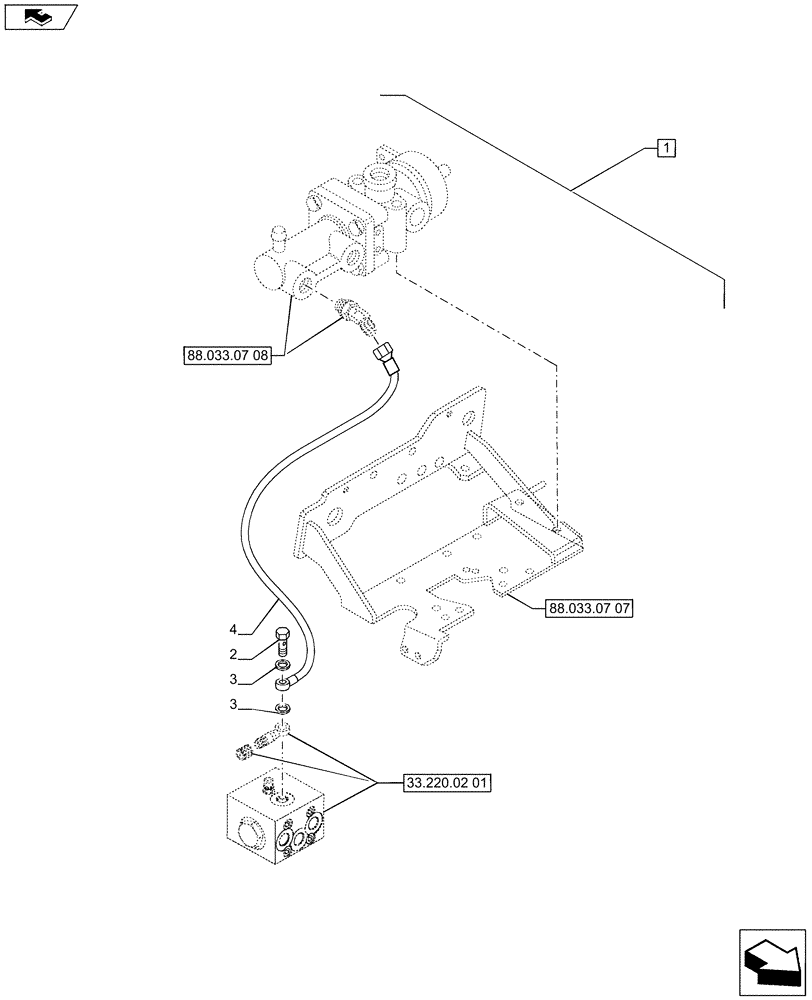

Схема запчастей Case IH PUMA 215 - (88.033.07[04]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - LOGIC VALVE DELIVERY PIPE (88) - ACCESSORIES
1
home
88.033.07 08
88.033.07 07
33.220.02 01
2
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719385214

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal), Contains Ref. 2-4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

4

87690537

HOSE

1шт.

Выбрано товаров: 5
