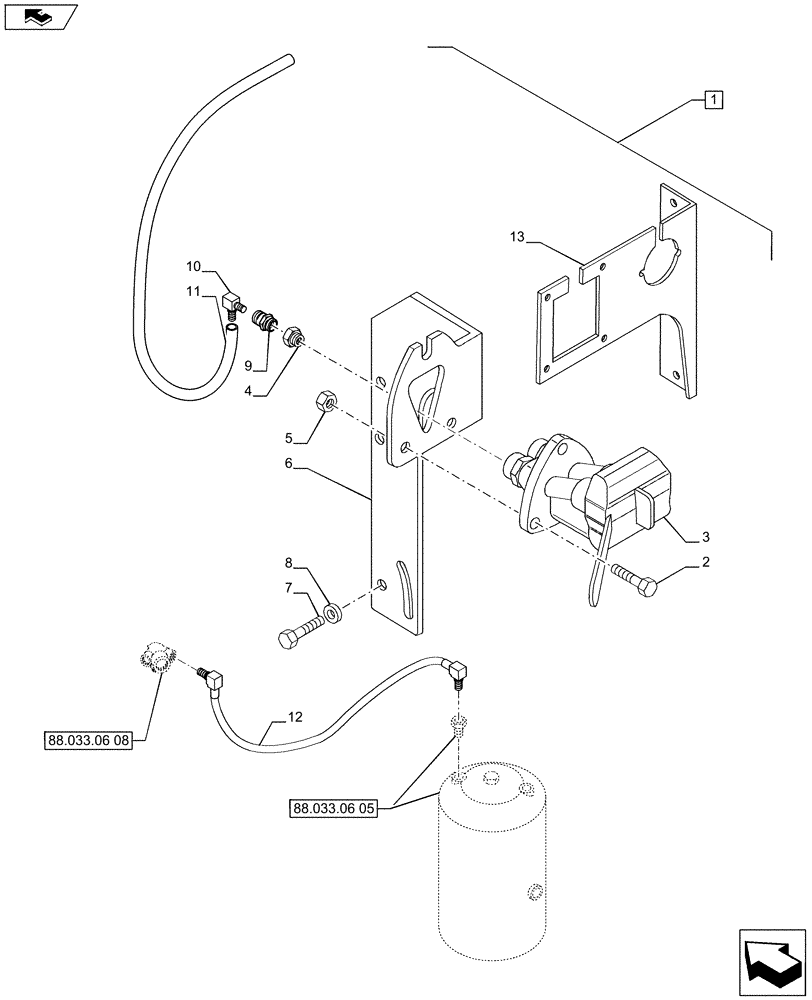

Запчасти Case IH PUMA 215 (88.033.06[06]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (88) - ACCESSORIES

1

718385214

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

3

87692947

PUSH-PULL COUPLING

1шт.

4

82034157

ADAPTER

1шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

6

87666026

BRACKET

1шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

87741618

COUPLING

2шт.

10

82038479

90 ELBOW,NG12 x 12mm D

1шт.

11

84181246

FLEXIBLE HOSE

1шт.

12

87519551

BRAKE LINE,7.5 mm ID x 10 mm OD x 1600 mm L

1шт.

13

84167089

SUPPORT

1шт.
