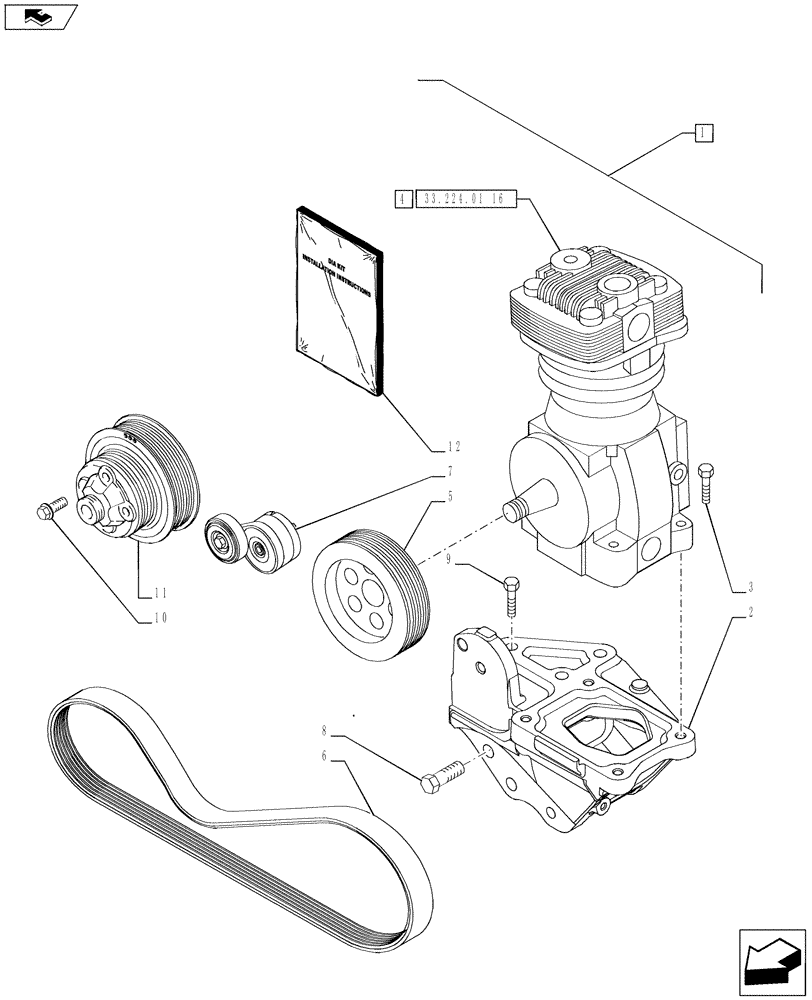

Запчасти Case IH PUMA 215 (88.033.05[01]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - AIR COMPRESSOR (88) - ACCESSORIES

1

710178214

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK), Contains Ref. 2-11 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87306409

HOLDER

1шт.

3

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

4

84184562

AIR COMPRESSOR

1шт.

5

82036658

PULLEY

1шт.

6

87300105

V-BELT,14.04 mm W x 968.00 mm L

1шт.

7

87300104

BELT TENSIONER

1шт.

8

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

2шт.

9

11107821

BOLT,Hex, M10 x 80mm, Cl 8.8

3шт.

10

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

11

2859228

PULLEY,138mm OD

1шт.

12

84243044

INSTRUCTION

1шт.
