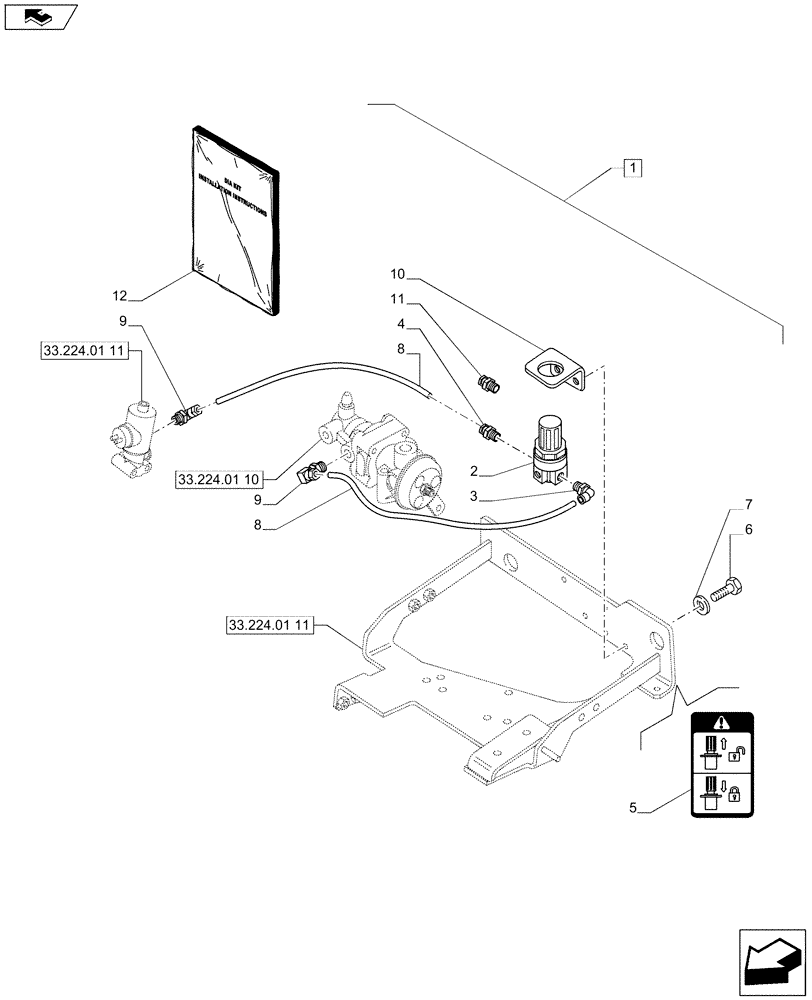

Запчасти Case IH PUMA 215 (88.033.01) - DIA KIT - PRESSURE REGULATOR (88) - ACCESSORIES

1

719178014

DIA KIT, TRACTOR

Air Brake Advanced Braking Pressure Regulator, Contains Ref. 2-11 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87678129

REGULATOR

1шт.

3

87677922

90 ELBOW,6.00mm Tube, 1/4" BSPT

1шт.

4

87677921

ADAPTER,6.00mm Tube, 1/4" BSPT

1шт.

5

84149764

DECAL

Decal Warning Pressure Regulator

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

8

87479478

TUBE

2шт.

9

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

10

87479476

BRACKET

1шт.

11

82006828

ADAPTER

1шт.

12

84161704

INSTRUCTION

1шт.
