(88.010.03) - DIA KIT - BIO DIESEL FILTER

Запчасти Case IH PUMA 215 (88.010.03) - DIA KIT - BIO DIESEL FILTER (88) - ACCESSORIES

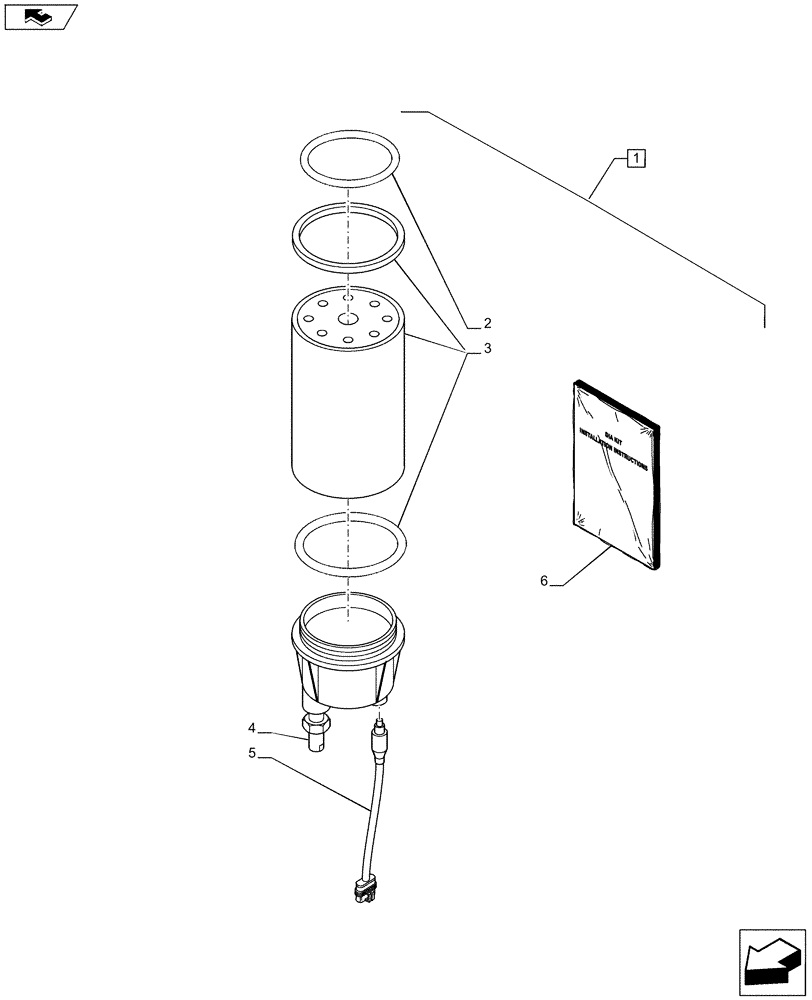

Схема запчастей Case IH PUMA 215 - (88.010.03) - DIA KIT - BIO DIESEL FILTER (88) - ACCESSORIES
6
1
4
home
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719259044

DIA KIT, TRACTOR

Bio Diesel Filter, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87718505

O-RING

1шт.

3

87722692

FUEL FILTER

1шт.

Valid with PUMA 170-CVT Models

1шт.

4

87718480

FILTER BOWL

1шт.

5

87718481

SENSOR

1шт.

6

84245235

INSTRUCTION

1шт.
