(55.512.05[03]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL (VAR. 743921, 728484)

Запчасти Case IH PUMA 215 (55.512.05[03]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL (VAR. 743921, 728484) (55) - ELECTRICAL SYSTEMS

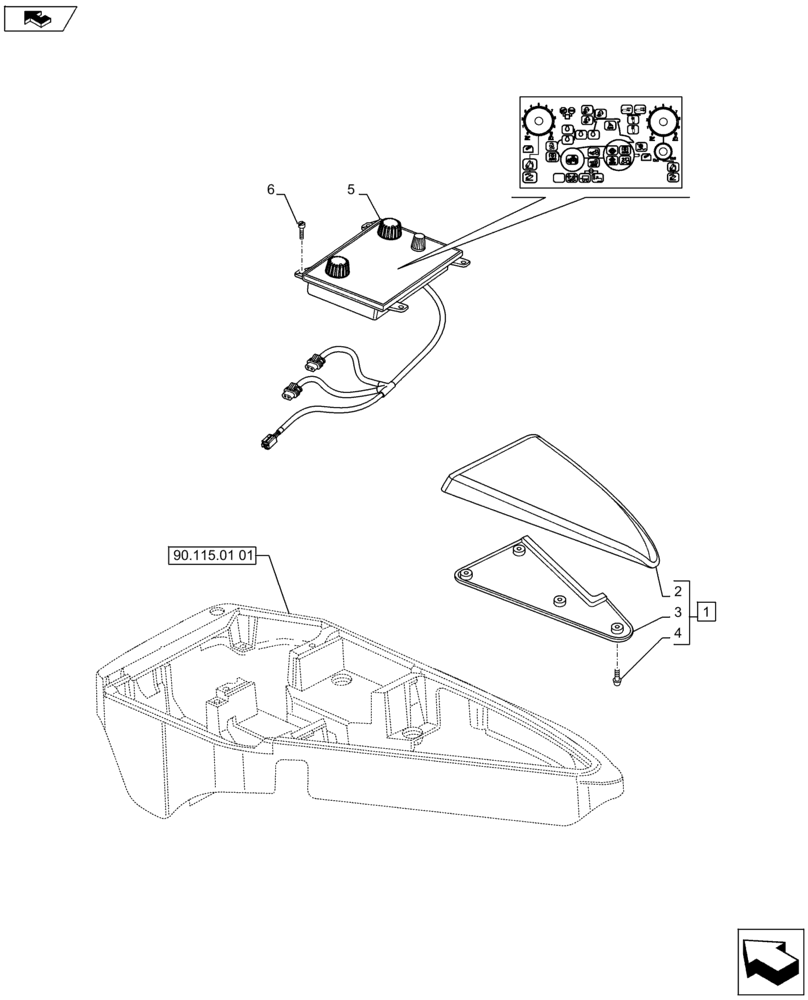

Схема запчастей Case IH PUMA 215 - (55.512.05[03]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL (VAR. 743921, 728484) (55) - ELECTRICAL SYSTEMS
1
2
6
90.115.01 01
4
3
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84394441

ECU

ICP with EFH

1шт.

2

87485752

CUSHION

ASSY, Incl 4 - 6

1шт.

3

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

4

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

5

87486097

PANEL

1шт.

6

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

Выбрано товаров: 6
