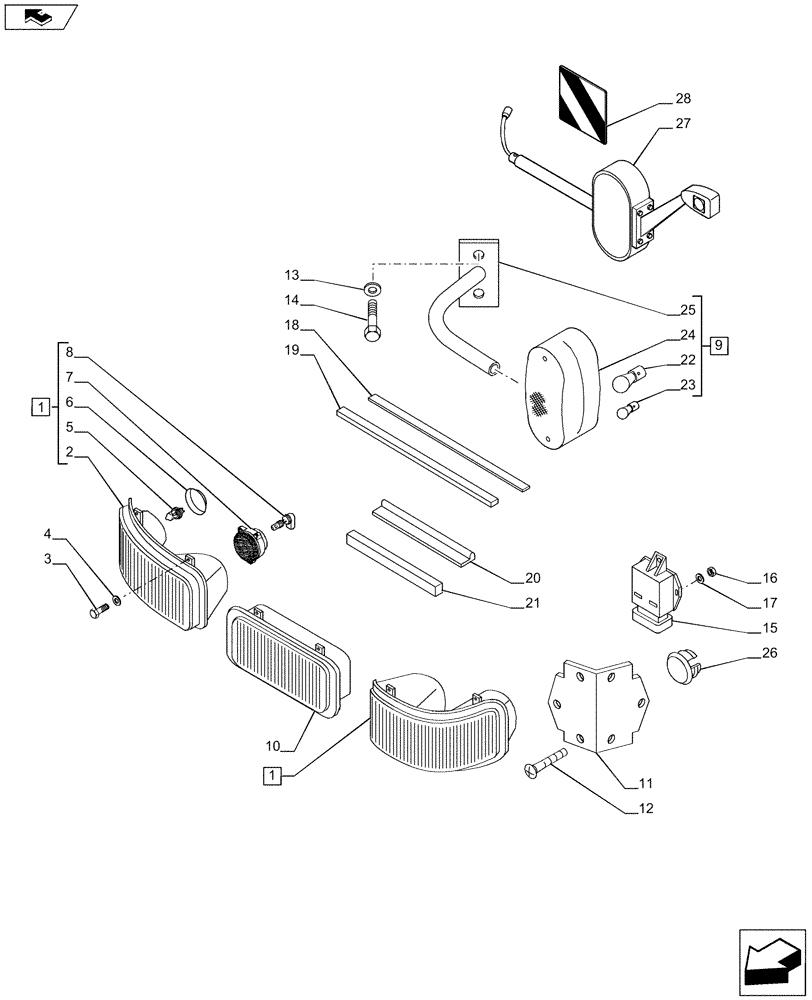

Запчасти Case IH PUMA 215 (55.404.01[01]) - FRONT LIGHT AND TURN INDICATORS (55) - ELECTRICAL SYSTEMS

1

87455683

HEADLAMP

RH, ASSY, Contains Ref. 2,5-8

1шт.

Headlamp with 2 work lights for driving on left hand side, VAR.720760

1шт.

1

87455685

HEADLAMP,12V, Clear

RH, ASSY, Contains Ref. 2,5-8

1шт.

1

87308991

HEADLAMP

RH, ASSY, Contains Ref. 2,5-8

1шт.

USA Completition Package, VAR.744457-744458 (COMMERCIAL FEATURE 743100)

1шт.

NAR Head Lamp RH Dip with 2 Work Lights, VAR.743226

1шт.

CVT Models only

1шт.

1

87455684

HEADLAMP,12V, Clear

LH, ASSY, Contains Ref. 2,5-8

1шт.

1

87455682

HEADLAMP

LH, ASSY, Contains Ref. 2,5-8

1шт.

Headlamp with 2 work lights for driving on left hand side, VAR.720760

1шт.

1

87308990

HEADLAMP

LH, ASSY, Contains Ref. 2,5-8

1шт.

USA Completition Package, VAR.744457-744458 (COMMERCIAL FEATURE 743100)

1шт.

NAR Head Lamp RH Dip with 2 Work Lights, VAR.743226

1шт.

CVT Models only

1шт.

2

NSS

NOT SOLD SEPARAT

Headlamp

1шт.

3

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

12шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

12шт.

5

87283179

BULB,H4, 12V, 60/55W

12V - 60/55W

1шт.

6

82004449

BULB,Halogen, 12V, 50W

1шт.

7

87314917

LAMP

1шт.

7

82035642

HEADLAMP,12V, 50W, Clear

1шт.

Parts Shown Are Also Available in DIA Kit 718751024

1шт.

8

87365799

BULB

1шт.

9

87313269

SIDE LAMP ASSY

RH, Contains Ref. 22-25

1шт.

9

87313268

SIDE LAMP ASSY

LH, Contains Ref. 22-25

1шт.

9

87313282

SIDE LAMP ASSY

LH, Contains Ref. 22-25

1шт.

For European 3M Highway Regulations, VAR.728669

1шт.

9

87313281

SIDE LAMP ASSY

RH, Contains Ref. 22-25

1шт.

For European 3M Highway Regulations, VAR.728669

1шт.

10

87455686

COVER

1шт.

11

87520630

BRACKET

2шт.

12

87316148

SELF-TAP SCREW

10шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

15

87577636

FLASHER UNIT

1шт.

For European 3M Highway Regulations, VAR.728669

1шт.

15

82038684

FLASHER UNIT

1шт.

CVT Models only

1шт.

For NAR Versions, VAR.720007

1шт.

16

15896211

NUT,M6, Cl 8

2шт.

17

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

18

84381184

SEALING STRIP,20mm W x 935mm L x 3mm Thk

Top

1шт.

19

84381185

SEALING STRIP,20mm W x 990mm L x 3mm Thk

Bottom

1шт.

20

84381186

FOAM INSULATION,20mm W x 350mm L x 7.8mm Thk

Side

2шт.

21

84381187

GASKET

Thick

2шт.

22

14148090

BULB,PY21W, 12V, 21W

12V-21W

1шт.

23

10857790

BULB,R10W, 12V, 5W

1шт.

24

NSS

NOT SOLD SEPARAT

Headlamp

1шт.

25

82038911

SUPPORT

LH

1шт.

For European 3M Highway Regulations, VAR.728669

1шт.

25

82038910

SUPPORT

RH

1шт.

For European 3M Highway Regulations, VAR.728669

1шт.

26

82037605

PLUG,11.5mm ID

6шт.

CVT Models only

1шт.

For NAR Versions, VAR.720007

1шт.

27

87607244

WORK LAMP,RH Led, 12-24V, White Lens

RH

1шт.

Parts Shown Are Also Available in DIA Kit 710592014

1шт.

27

87607245

WORK LAMP,LH Led, 12/24V, White Lens

LH

1шт.

Parts Shown Are Also Available in DIA Kit 710592014

1шт.

28

87448098

PLATE

1шт.

Parts Shown Are Also Available in DIA Kit 710592014

1шт.
