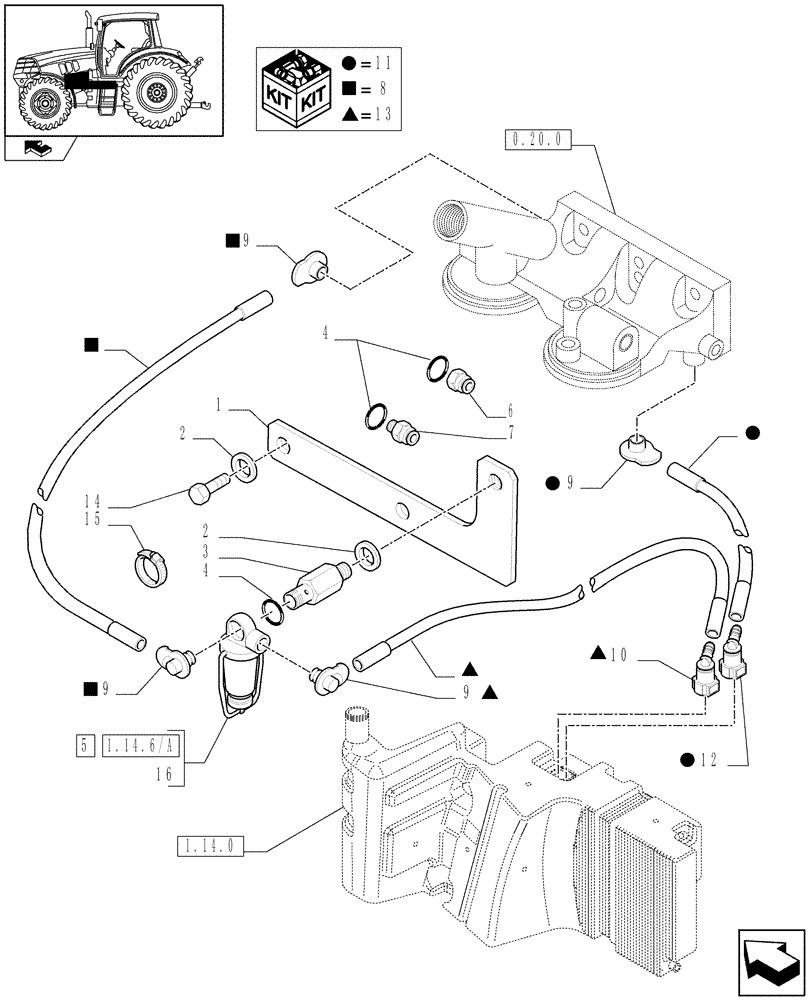

Запчасти Case IH PUMA 210 (1.14.6[01]) - FUEL LINES - C7115 (02) - ENGINE EQUIPMENT

1

87591419

HOLDER

1шт.

2

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

3

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

12 x 1.75

1шт.

4

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

D=14MM

3шт.

5

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY., Biodiesel compatible, Start Serial: D6809

1шт.

6

87585673

HYD CONNECTOR

14 x 1.5

1шт.

7

4893833

HYD CONNECTOR

14 x 1.5

1шт.

8

87591975

TUBE,8 mm OD x 550 mm L

Feed, 550MM

1шт.

9

82028482

FITTING

4шт.

10

82028479

FITTING

Red

1шт.

11

82028475

FUEL TUBE,8mm OD X 960 mm

Return, 960MM, Serial Range: -C6857

1шт.

11

84356045

FUEL TUBE,11mm OD X 750mm

Return, 750MM, Start Serial: D6857

1шт.

12

82028480

COUPLING, QUICK, FEM

Green

1шт.

13

87696294

FUEL HOSE,6mm ID x 920mm L

Feed, 820MM

1шт.

14

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

15

82013031

CABLE TIE,193mm L

CABLE STRAP

3шт.

16

87592298

FILTER ASSY

, Serial Range: -C6809

1шт.
