Запчасти Case IH PUMA 210 (1.97.0[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (10) - OPERATORS PLATFORM/CAB

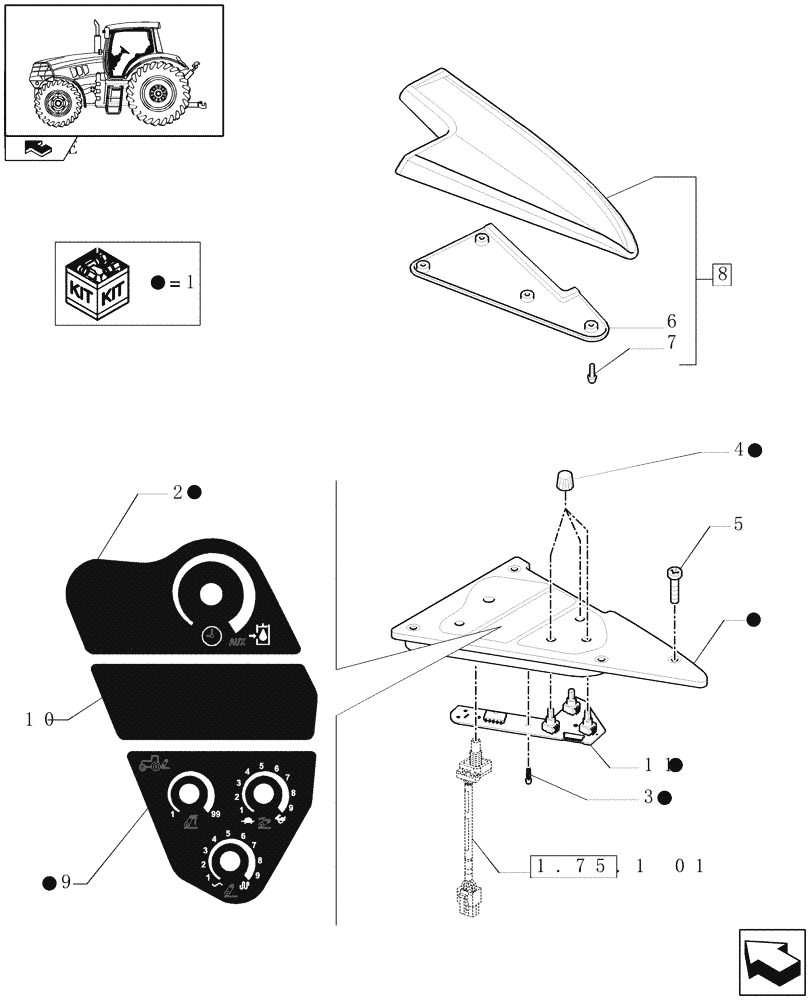

Схема запчастей Case IH PUMA 210 - (1.97.0[02]) - ARMREST CONTROL UNIT - COVERS AND CONTROLS (10) - OPERATORS PLATFORM/CAB
11
1
1
1
7
10
1
1
home
2
1
9
4
1
1.75.1 01
6
5
8
1
3

Артикул

Название

Примечание

Количество

1

84168655

ELECTRIC PANEL

1шт.

2

84217911

DECAL

1шт.

3

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

2.5 x 10

3шт.

4

82012988

KNOB

4шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 16

4шт.

6

87486097

PANEL

1шт.

7

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

8

87495096

CUSHION

1шт.

9

84217912

DECAL

1шт.

10

84185497

DECAL

1шт.

11

84206632

PRINTED CIRCUIT BOAR

1шт.

With EDC Panel L/Slip Control

1шт.

Выбрано товаров: 12
