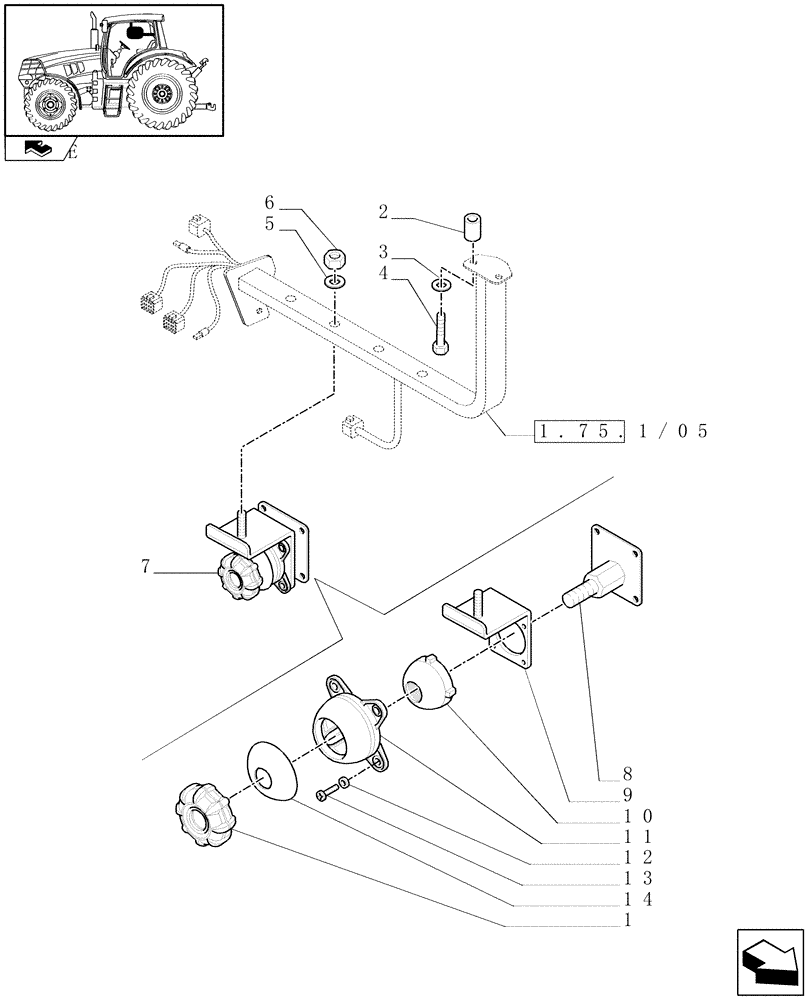

Запчасти Case IH PUMA 210 (1.96.0/01) - (VAR.131/1) PREDISPOSITION FOR VIRTUAL TERMINAL MOUNTED ON IMPLEMENT BRACKET (10) - OPERATORS PLATFORM/CAB

1

87316701

KNOB

1шт.

2

87559024

SPACER

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

4

13274617

SCREW,Pozidriv Pan Hd, M5 x 25mm

3шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

7

87614599

SUPPORT

ASSY

1шт.

8

87565605

SUPPORT

1шт.

9

87614600

BRACKET

1шт.

10

87614603

CUP,Black

1шт.

11

87614602

BASE

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

13

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

14

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.
