Запчасти Case IH PUMA 210 (1.95.5/02[01A]) - (VAR.190-332-348) AUTOGUIDANCE STEERING SYSTEM - VALVES AND PIPES - D6831 (10) - OPERATORS PLATFORM/CAB

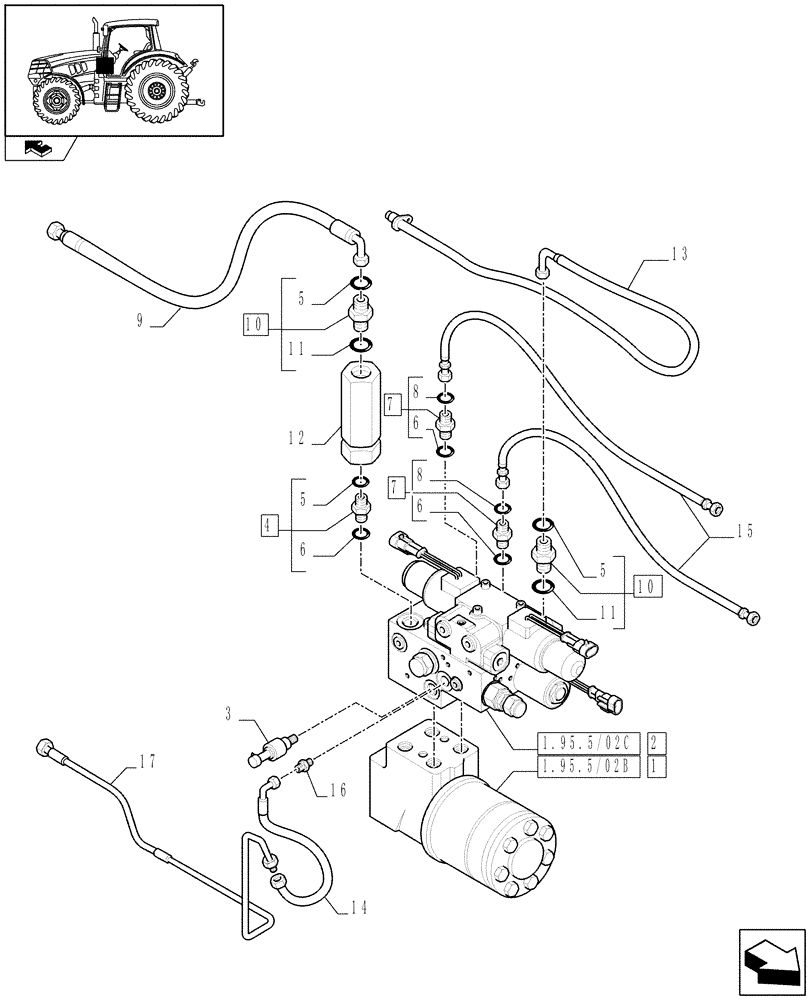

Схема запчастей Case IH PUMA 210 - (1.95.5/02[01A]) - (VAR.190-332-348) AUTOGUIDANCE STEERING SYSTEM - VALVES AND PIPES - D6831 (10) - OPERATORS PLATFORM/CAB
16
10
5
11
10
14
2
4
7
8
8
6
6
9
6
11
7
13
1
3
17
5
home
1.95.5/02b
1.95.5/02c
5
12
15

Артикул

Название

Примечание

Количество

1

84145984

STEERING VALVE

, Serial Range: -C6724

1шт.

1

84261626

STEERING VALVE

, Start Serial: D6724

1шт.

2

84166215

VALVE SECTION

1шт.

3

87428328

PRESSURE SWITCH

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1шт.

5

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

3шт.

7

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

84125637

HOSE

1шт.

10

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

11

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

12

87350633

FILTER

1шт.

13

84125657

HOSE

1шт.

14

84203497

HOSE

Load Sense

1шт.

15

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

16

76076087

FITTING,M12 x 1.5 ORB x 9/16"-18 ORFS

1шт.

17

84203518

PIPE

1шт.

Выбрано товаров: 18
