Запчасти Case IH PUMA 210 (1.95.1) - HANDBRAKE CONTROL (10) - OPERATORS PLATFORM/CAB

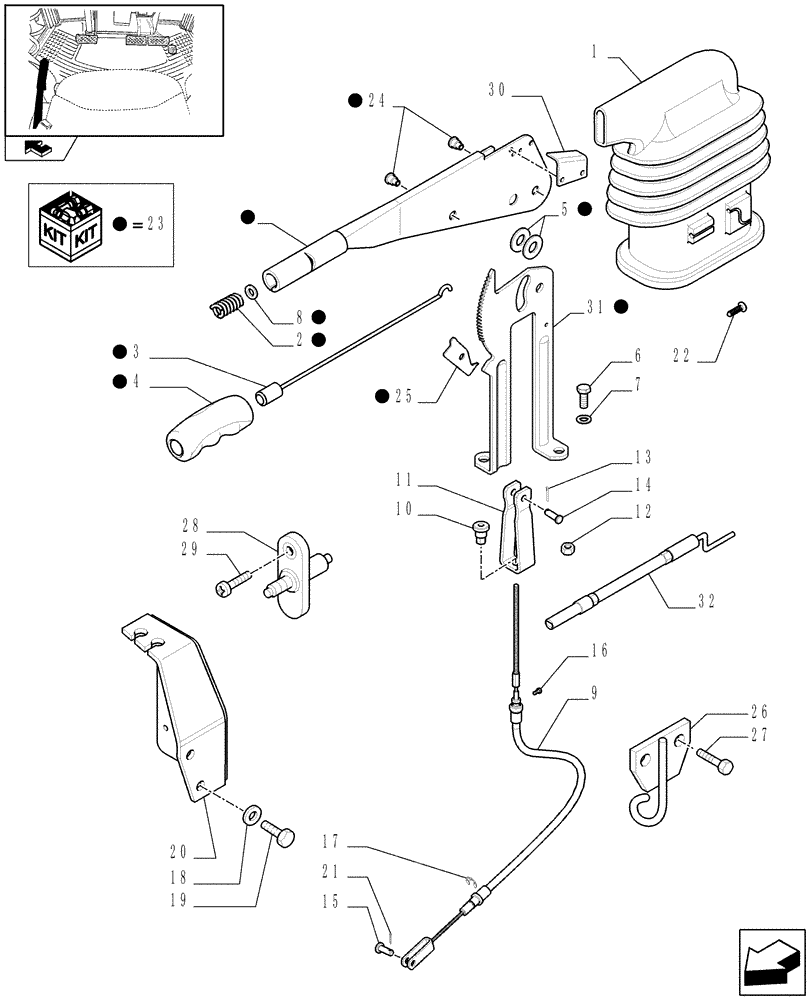

Схема запчастей Case IH PUMA 210 - (1.95.1) - HANDBRAKE CONTROL (10) - OPERATORS PLATFORM/CAB
29
23
27
17
23
30
15
7
23
3
6
24
25
13
home
23
23
8
23
14
10
26
1
31
28
11
23
9
4
23
5
12
23
2
21
23
16
18
23
20
19
32
22

Артикул

Название

Примечание

Количество

1

84213451

BOOT

1шт.

2

84199076

SPRING,11.25mm OD x 44.5mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

81866089

WASHER,Flat, 12.00mm ID x 23.00mm OD x 2.00mm

2шт.

6

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

9

84140203

BOWDEN CONTROL

1шт.

10

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

11

84140224

CLEVIS

1шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

13

81813880

COTTER PIN,3/32" x 3/4"

1шт.

14

83902558

PIN,3/8" x 1.312"

1шт.

15

10033411

PIN,10mm OD x 27mm L

1шт.

16

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

17

11087374

CIRCLIP,M13

1шт.

18

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

19

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

20

87689273

BRACKET

1шт.

21

10766901

COTTER PIN,M3.2 x 25

1шт.

22

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

23

84174329

BRAKE LEVER

1шт.

24

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

25

82863025

PAWL,4.5mm Thk

1шт.

26

82034369

SLIDE GUIDE

1шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

27

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

28

82022836

SWITCH

2шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

29

82000732

SCREW,Pan, M4 x 1.4 x 12mm, Cl 4.8

2шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

30

84199077

PROTECTION PLATE

1шт.

31

84174325

SUPPORT

1шт.

32

84123734

TOOL

1шт.

Выбрано товаров: 36
