Запчасти Case IH PUMA 210 (1.93.3/02[01]) - (VAR.066/1-865) PASSENGER SEAT - C9014 (10) - OPERATORS PLATFORM/CAB

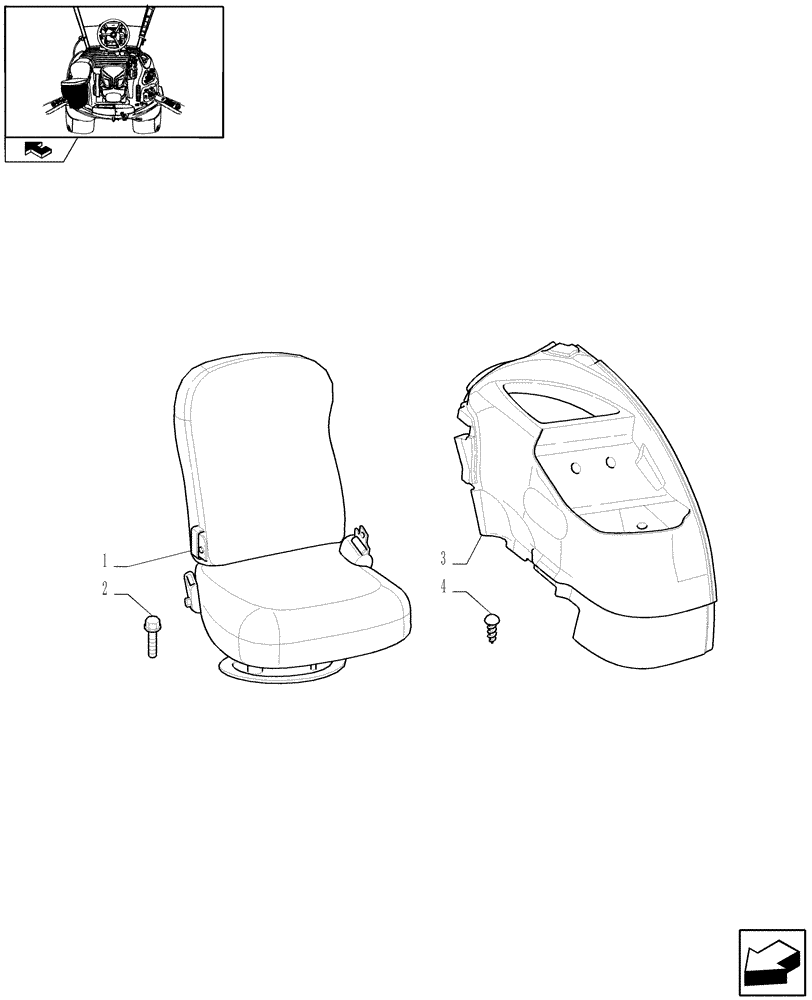

Схема запчастей Case IH PUMA 210 - (1.93.3/02[01]) - (VAR.066/1-865) PASSENGER SEAT - C9014 (10) - OPERATORS PLATFORM/CAB
3
2
4
home
1

Артикул

Название

Примечание

Количество

1

87487002

SEAT

1шт.

With Left Side Instructional Seat, VAR.865

1шт.

1

87519649

INSTRUCTIONAL SEAT

1шт.

With Left Side Instructional Seat in Leather, CVT Models, VAR.066/1

1шт.

2

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

Back Cushion

6шт.

3

87591843

PADDING

LH, Serial Range: -C6754

1шт.

With Left Side Instructional Seat, VAR.865

1шт.

3

84242778

PADDING

LH, Start Serial: D6754

1шт.

With Left Side Instructional Seat, VAR.865

1шт.

3

87591763

SOFT TRIM

LH, Serial Range: -C6754

1шт.

With Left Side Instructional Seat in Leather, CVT Models, VAR.066/1

1шт.

3

84242772

SOFT TRIM

LH, Start Serial: D6754

1шт.

With Left Side Instructional Seat in Leather, CVT Models, VAR.066/1

1шт.

4

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

Выбрано товаров: 14
