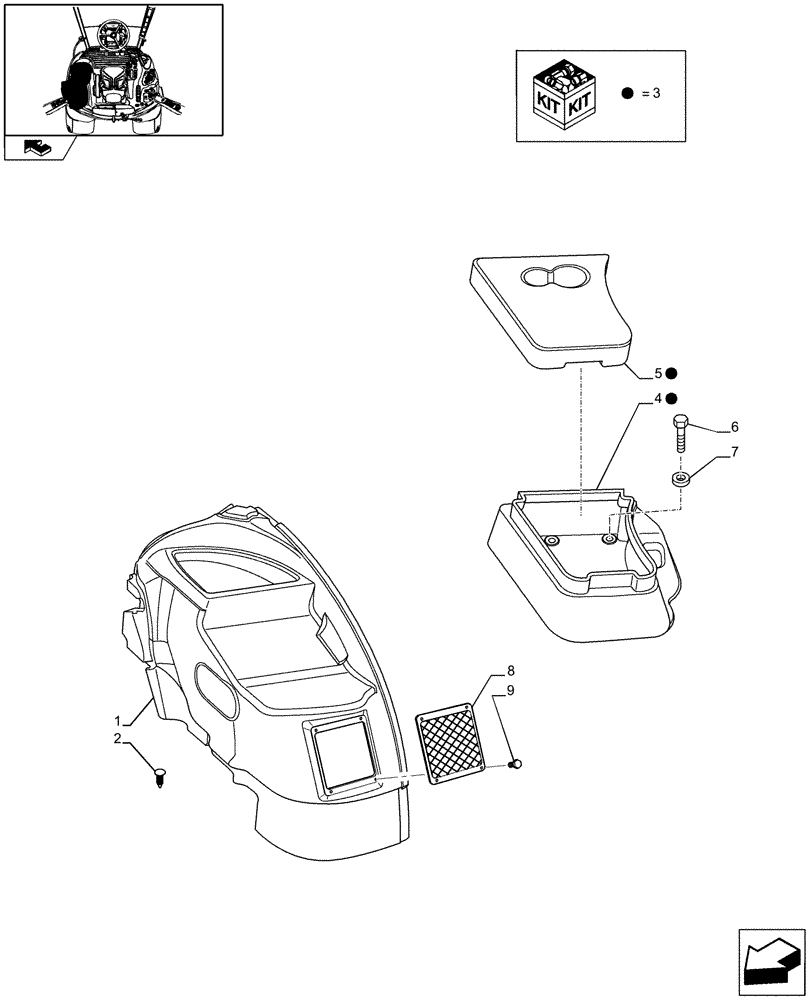

Запчасти Case IH PUMA 210 (1.93.0/01[01A]) - (VAR.671) FRONT LEFT CAB STORAGE BOX - D9014 (10) - OPERATORS PLATFORM/CAB

1

47389188

SOFT TRIM

1шт.

2

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

3

82031621

CAB STORAGE BOX

1шт.

4

82031622

SOFT TRIM

1шт.

5

82027464

TOP COVER

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

8

84600304

NET

LH

1шт.

9

13271817

SCREW,Pozidriv Pan Hd, M4 x 8mm, Cl 5.8, Full Thd

4шт.
