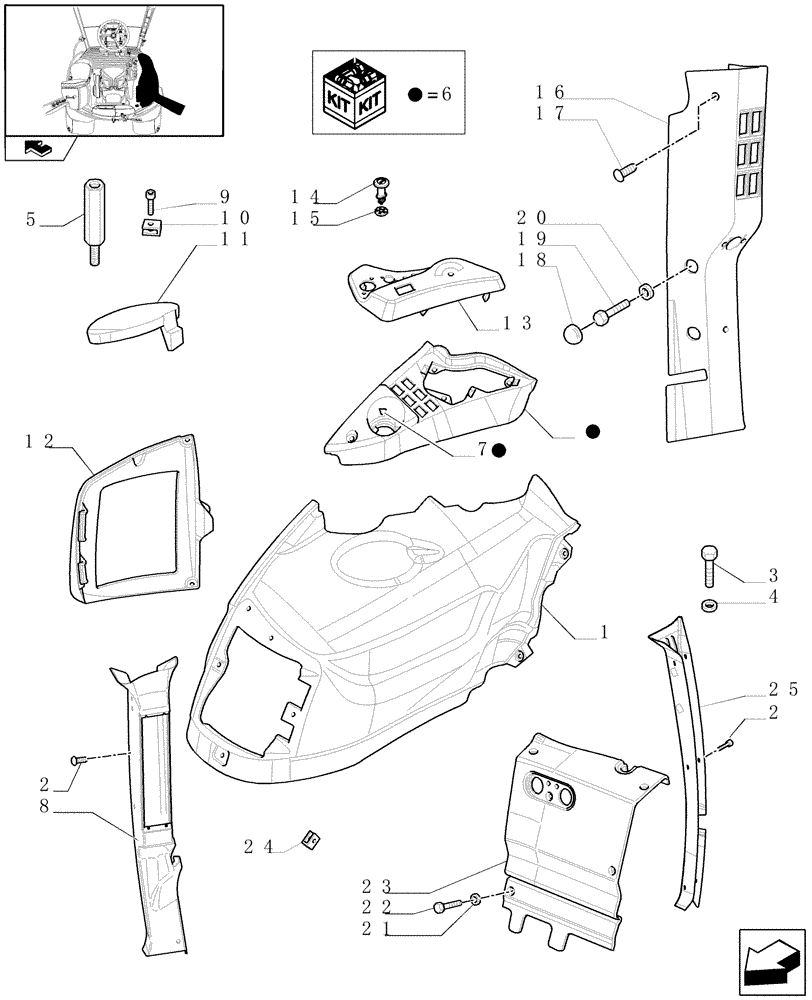

Запчасти Case IH PUMA 210 (1.93.0[02A]) - CONTROLS COVER - D6454 - C6514 (10) - OPERATORS PLATFORM/CAB

1

84143954

SIDE PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

14шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

87493058

SPACER,Hex, M6 x 1 x 47mm L

1шт.

6

84206691

COVER

1шт.

7

304061A1

BUMPER,Rubber

3шт.

8

87388211

PADDING

RH Front

1шт.

9

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

4шт.

10

14369274

RETAINER COLLAR

1шт.

11

87752306

BLANK-OFF PLUG,Grey

1шт.

12

87734672

COVER

1шт.

13

84178068

COVER

1шт.

14

87734455

FASTENER

2шт.

15

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

16

87479489

PADDING

RH Rear

1шт.

17

82023460

STUD,M7.85 x 19.50mm, Plastic

6шт.

18

82012814

CAP,M10

2шт.

19

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

20

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

22

15646907

SELF-TAP SCREW,Pozidriv Pan Hd, 16mm L

M6 x 12

4шт.

23

87479668

PANEL

1шт.

24

87567755

SPRING NUT,M5

NUT

2шт.

25

84222160

SOFT TRIM

LH Front

1шт.
