Запчасти Case IH PUMA 210 (1.92.5/02) - (VAR.292) WIDE REAR FENDERS AND EXTENSIONS - FOR GPL CAB (10) - OPERATORS PLATFORM/CAB

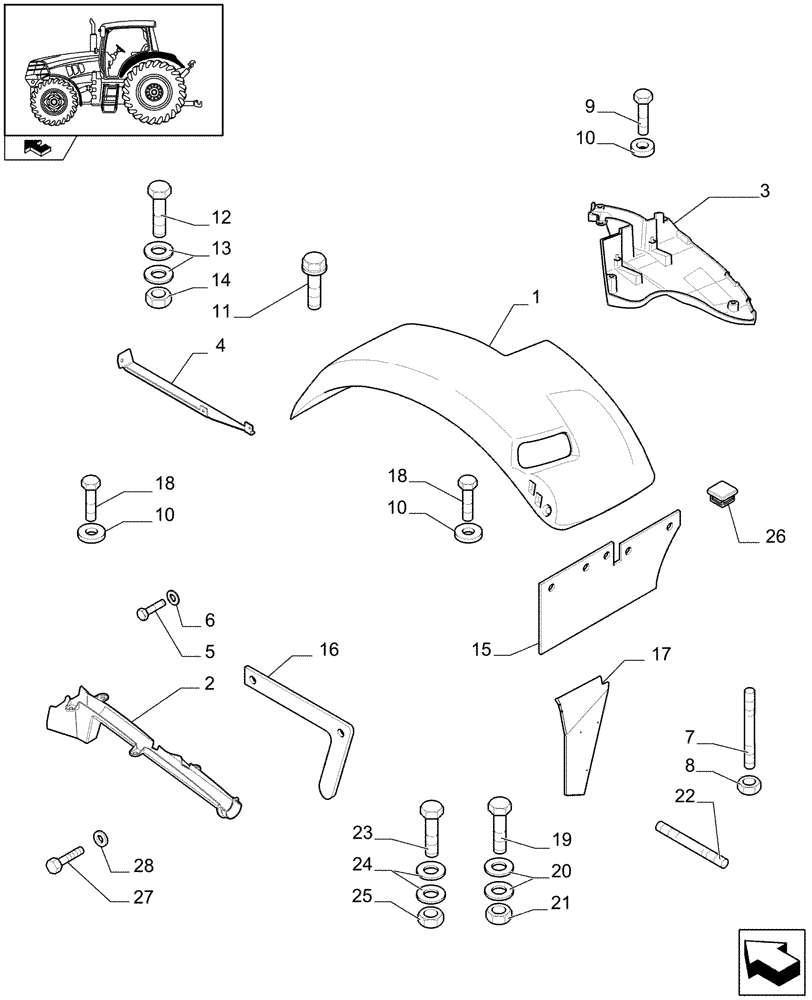

Схема запчастей Case IH PUMA 210 - (1.92.5/02) - (VAR.292) WIDE REAR FENDERS AND EXTENSIONS - FOR GPL CAB (10) - OPERATORS PLATFORM/CAB
19
2
10
11
18
14
28
22
25
23
26
7
27
9
13
10
17
home
16
8
12
4
6
20
3
21
15
18
5
1
10
24

Артикул

Название

Примечание

Количество

1

87554860

REAR FENDER

LH

1шт.

1

87554861

REAR FENDER

RH

1шт.

2

84537442

COVER

LH

1шт.

2

84537443

COVER

RH

1шт.

3

87383820

COVER

LH

1шт.

3

87383821

COVER

RH

1шт.

4

87389465

BRACKET

LH

1шт.

4

87389466

BRACKET

RH

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

18шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

18шт.

7

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

10

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

18шт.

11

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

2шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

15

87705290

MUDFLAP

2шт.

16

87705291

SUPPORT

2шт.

17

87484525

DEFLECTOR

RH

1шт.

17

87623580

DEFLECTOR

LH

1шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

19

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

4шт.

20

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

21

12574211

NUT,M6 x 1, Cl 8

4шт.

22

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

23

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

6шт.

24

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

12шт.

25

12574211

NUT,M6 x 1, Cl 8

6шт.

26

82033880

PLUG,70mm ID

2шт.

27

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

4шт.

28

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

Выбрано товаров: 33
