Запчасти Case IH PUMA 210 (1.92.5[01]) - REAR FENDERS (10) - OPERATORS PLATFORM/CAB

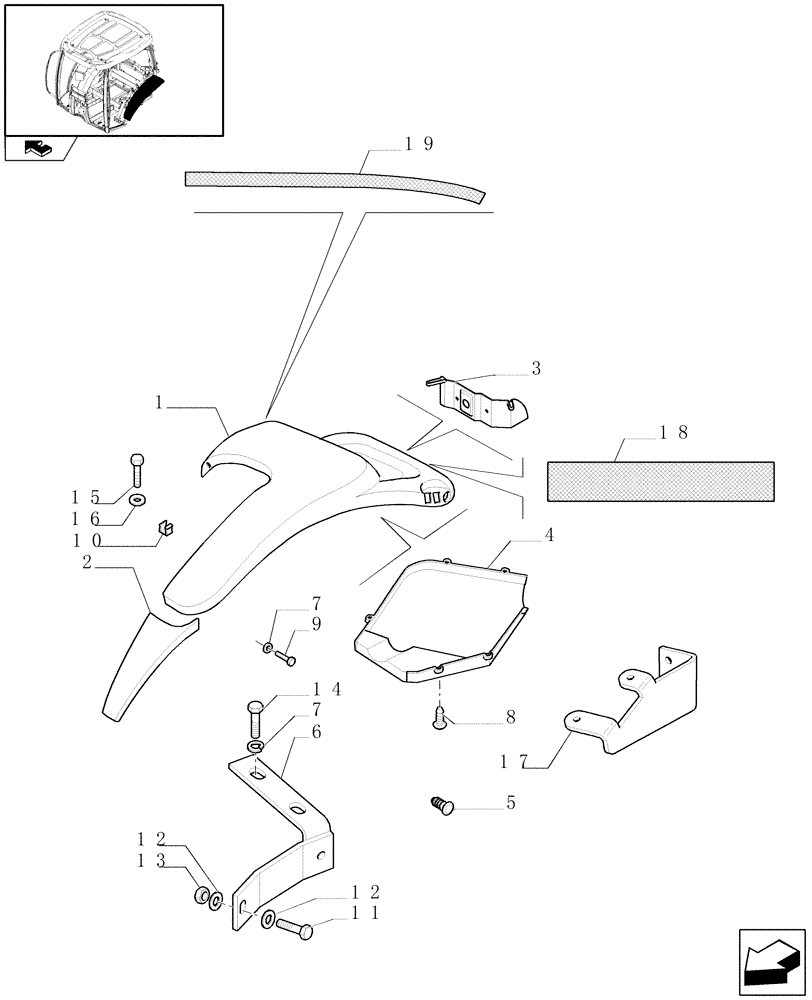

Схема запчастей Case IH PUMA 210 - (1.92.5[01]) - REAR FENDERS (10) - OPERATORS PLATFORM/CAB
14
1
19
11
home
12
5
15
3
4
12
8
7
9
18
2
10
13
16
17
6
7

Артикул

Название

Примечание

Количество

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

82037053

SUPPORT

LH

1шт.

6

82037051

SUPPORT

RH

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

14шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

13

15896211

NUT,M6, Cl 8

2шт.

14

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

16

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

17

82038220

BRACKET

LH

1шт.

With Bar Axle 119", VAR.181-181/1

1шт.

17

82038222

BRACKET

RH

1шт.

With Bar Axle 119", VAR.181-181/1

1шт.

18

87529851

DECAL

Retro Reflector, Serial Range: -C6526

2шт.

With USA Completion Package, VAR.100

1шт.

With Rear Reflectors for Narrow Fenders, VAR.093, Basildon Production only

1шт.

18

84249298

DECAL

Retro Reflector, Start Serial: D6526

2шт.

With USA Completion Package, VAR.100

1шт.

With Rear Reflectors for Narrow Fenders, VAR.093, Basildon Production only

1шт.

19

87529852

DECAL

LH

1шт.

With Rear Reflectors for wide Fenders, VAR.094, Basildon Production only

1шт.

19

87529853

DECAL

RH

1шт.

With Rear Reflectors for wide Fenders, VAR.094, Basildon Production only

1шт.

Выбрано товаров: 36
