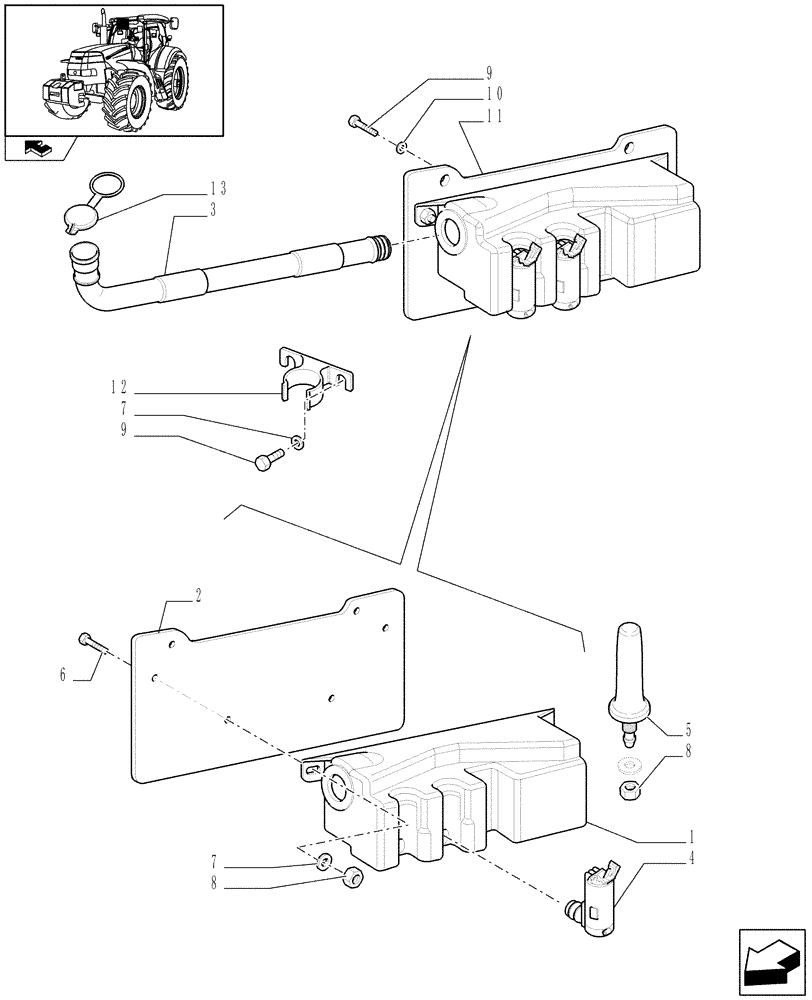

Запчасти Case IH PUMA 210 (1.91.5[01]) - WINDSHIELD WIPER TANK (10) - OPERATORS PLATFORM/CAB

1

82030995

RESERVOIR, WINDSHIEL

1шт.

2

87638111

PLATE

1шт.

3

87470604

TUBE,34 mm DIA x 575.51, 84.7 mm L

1шт.

4

82030996

PUMP

, Serial Range: -C7017

1шт.

4

84420264

PUMP,12V

12V, Start Serial: D7017

2шт.

5

82030999

JET

Rear

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

87638112

RESERVOIR, WINDSHIEL

1шт.

12

87475579

CLAMP BRACKET

1шт.

13

87527729

FILLER CAP

1шт.
