(1.90.7) - FIRE EXTINGUISHER PREDISPOSITION AND EMERGENCY EXIT HAMMER - D6514

Запчасти Case IH PUMA 210 (1.90.7) - FIRE EXTINGUISHER PREDISPOSITION AND EMERGENCY EXIT HAMMER - D6514 (10) - OPERATORS PLATFORM/CAB

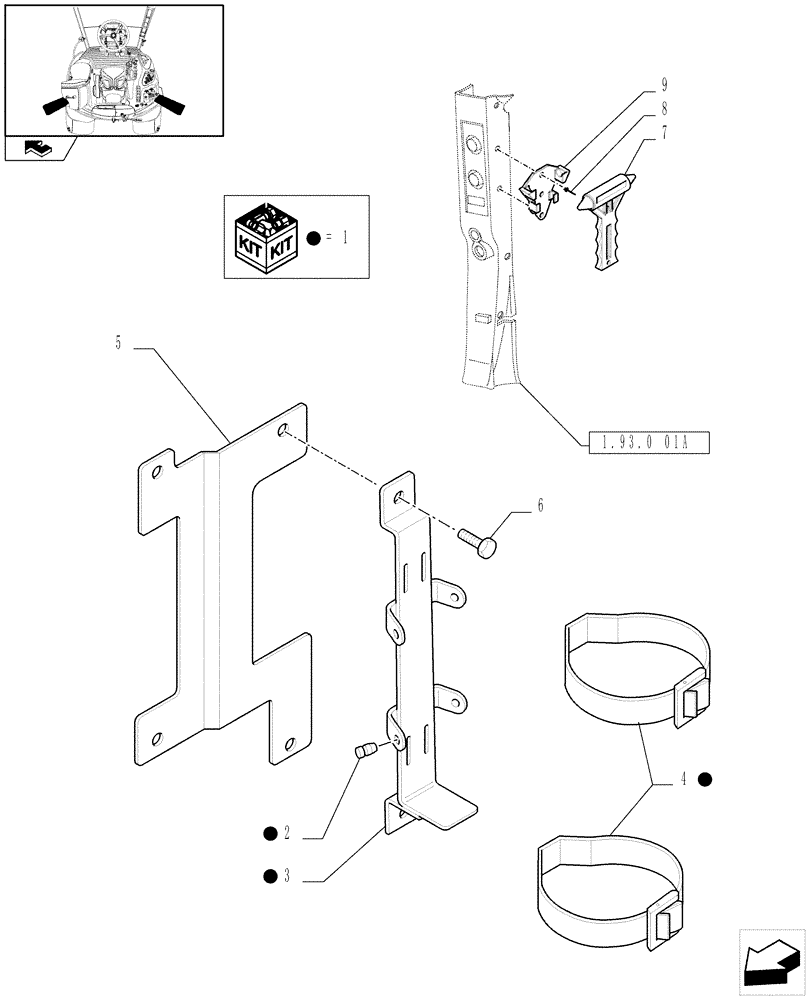

Схема запчастей Case IH PUMA 210 - (1.90.7) - FIRE EXTINGUISHER PREDISPOSITION AND EMERGENCY EXIT HAMMER - D6514 (10) - OPERATORS PLATFORM/CAB
7
8
1
1
1
6
3
4
9
1
2
home
1.93.0 01a
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84280012

SUPPORT

1шт.

2

14567080

FASTENER,Stud, Ribbed, 5.50mm x 4mm x 1mm, Plastic

4шт.

3

84280775

BRACKET, SUPPORTING

1шт.

4

84277341

BRACKET

2шт.

5

84282979

BRACKET

1шт.

6

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 x 20

2шт.

7

84302275

HAMMER

1шт.

8

14642095

RIVET

, Serial Range: -C7079

2шт.

8

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

, Start Serial: D7079

2шт.

9

84302276

BRACKET, SUPPORTING

1шт.
