Запчасти Case IH PUMA 210 (1.90.2/01) - MID MOUNTED VALVES - COVER (10) - OPERATORS PLATFORM/CAB

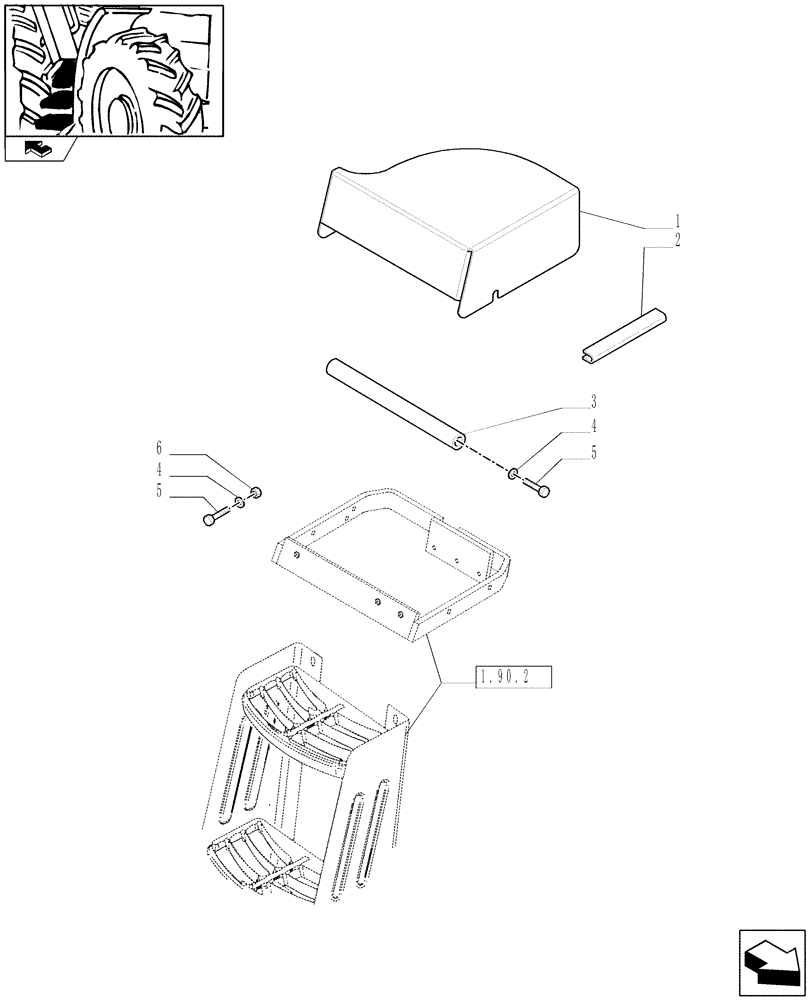

Схема запчастей Case IH PUMA 210 - (1.90.2/01) - MID MOUNTED VALVES - COVER (10) - OPERATORS PLATFORM/CAB
4
1.90.2
1
5
3
4
home
2
5
6

Артикул

Название

Примечание

Количество

1

87736310

COVER ASSY

1шт.

2

82036856

MOLDING,355mm L

L=355

1шт.

2

82869674

MOLDING,88.5mm L

L=88.5

1шт.

3

87598923

SUPPORT

1шт.

4

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

5

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

Выбрано товаров: 7
