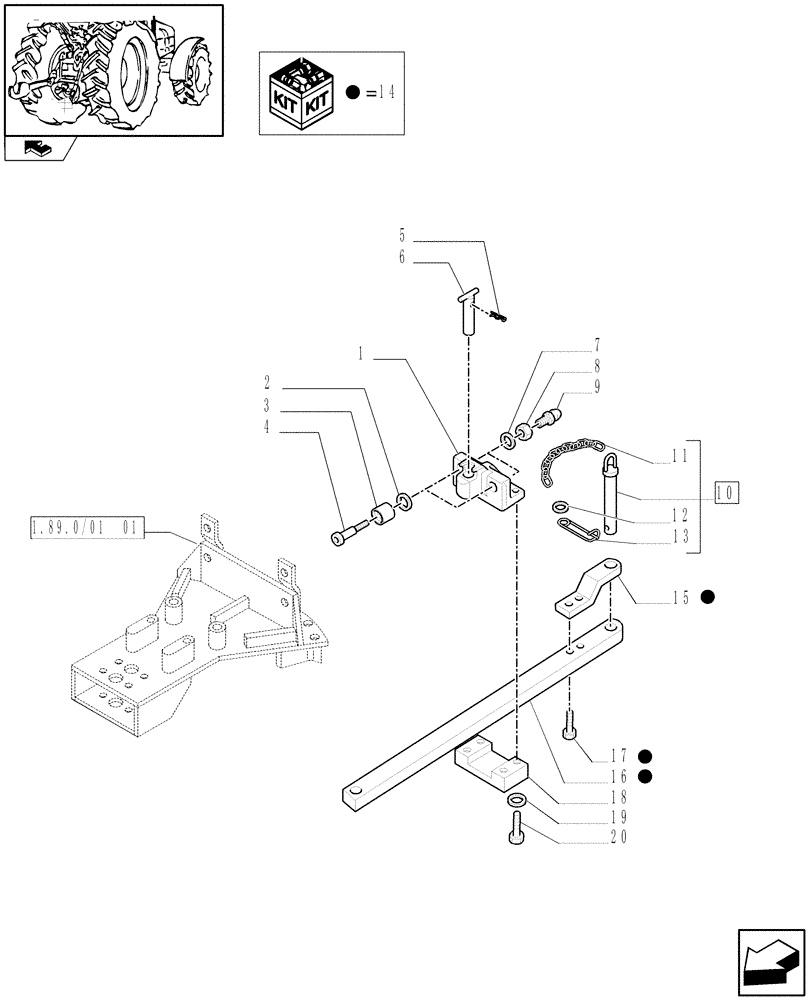

Запчасти Case IH PUMA 210 (1.89.0/01[02]) - (VAR.910) INDIPENDENT ROLLER SWINGING DRAWBAR (09) - IMPLEMENT LIFT

1

87693139

SUPPORT

1шт.

2

83954373

WASHER,1.11" ID x 1.57" OD x 0.28" Thk

2шт.

3

83954370

ROLLER,56.9mm OD x 60.2mm L

2шт.

4

83954368

BOLT,28.05mm OD x 126.64mm L

2шт.

5

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

6

82029383

PIN,26mm OD x 115.5mm L

1шт.

7

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

2шт.

8

83927122

NUT,Hex, 3/4"-16, 0.665" High, G5

2шт.

9

83416242

LUBE NIPPLE,Straight, 1/8"-27 x 0.66"

2шт.

10

83954379

HITCH PIN

1шт.

11

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

12

44901192

SNAP RING,25mm ID

1шт.

13

5152004

HAIR PIN COTTER,195mm L

1шт.

14

82027758

DRAWBAR

1шт.

15

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

16

82027756

DRAWBAR,1034.5mm L x 75mm W x 45mm Thk

1шт.

17

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

18

82035866

PLATE

1шт.

19

10572174

LOCK WASHER,Helical Spring, 16.20mm ID x 27.40mm OD x 3.50mm, C72, DAC

4шт.

20

82934360

BOLT,Hex, 5/8" - 11 x 4", Gr 8

M16 x 1.5 x 100

4шт.
